Humsienk - 48V (51.2V) 400Ah 20.48kWh Floor-standing Built-in BYD Cells LiFePO4 Battery with Wheels
Production dimension & weight: 1251*200*741mm | 186kg
- 6000+ Cycles with BYD Battery Cells: Long-life performance at 80% DoD far exceeding industry standard.

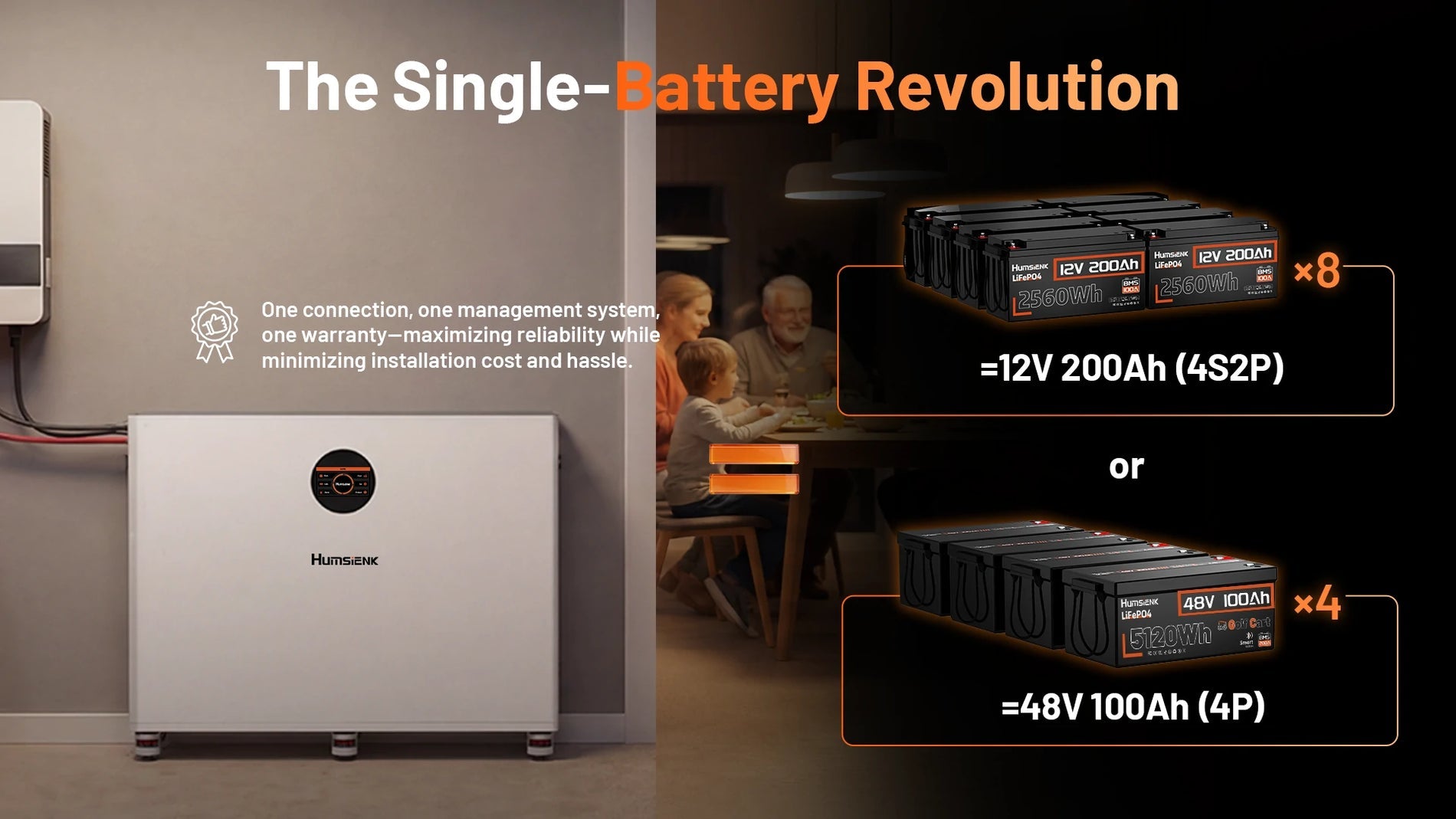

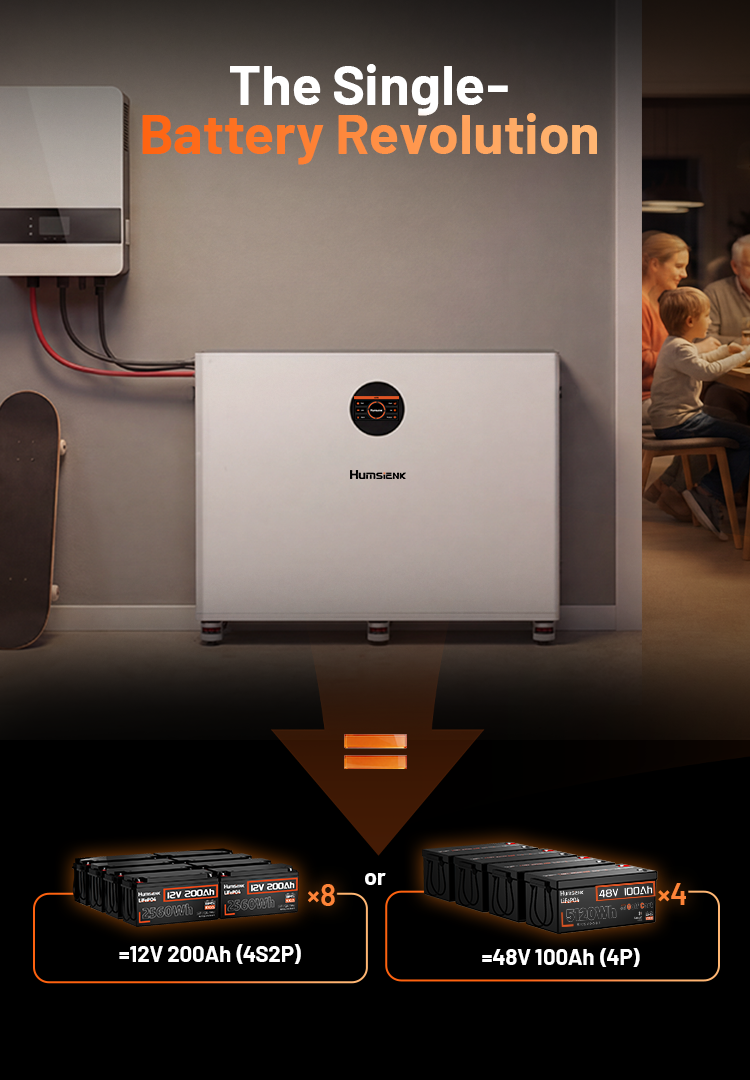

- 20.48 kWh in One Unit: Replaces 4x standard 48V 100Ah batteries. Simplifies setup, cuts wiring & costs.
- 200A Output for 7-10kW Inverters: Handles surge loads (motors, tools) & powers whole home/business.

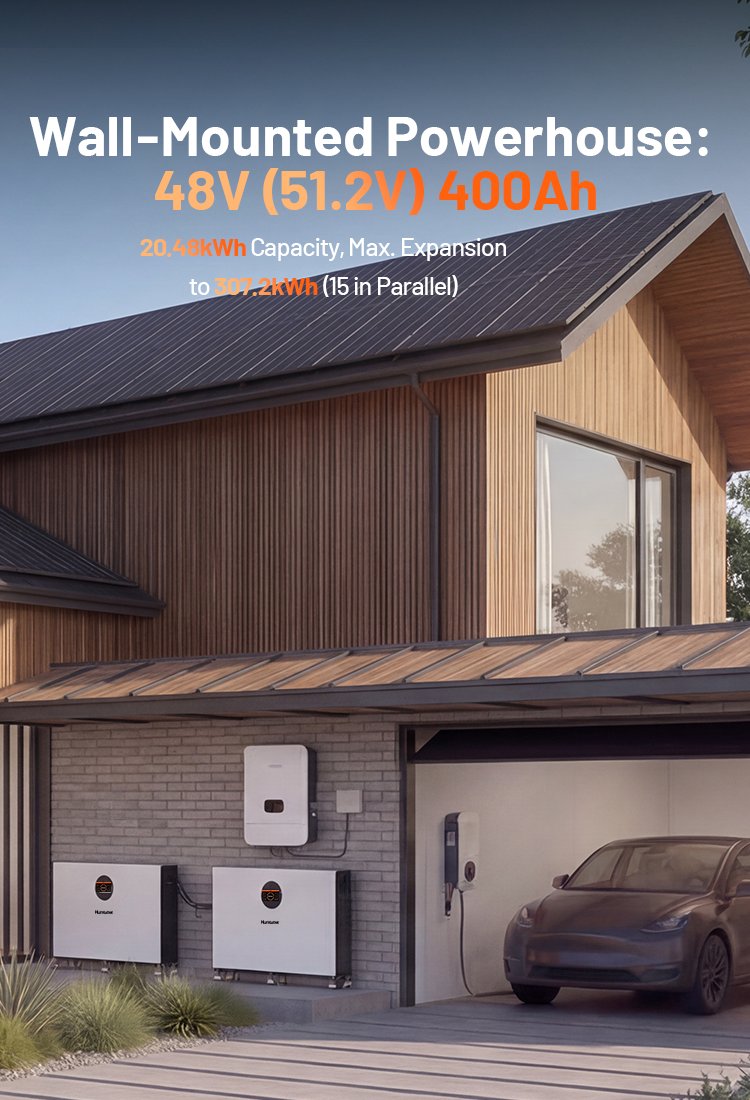

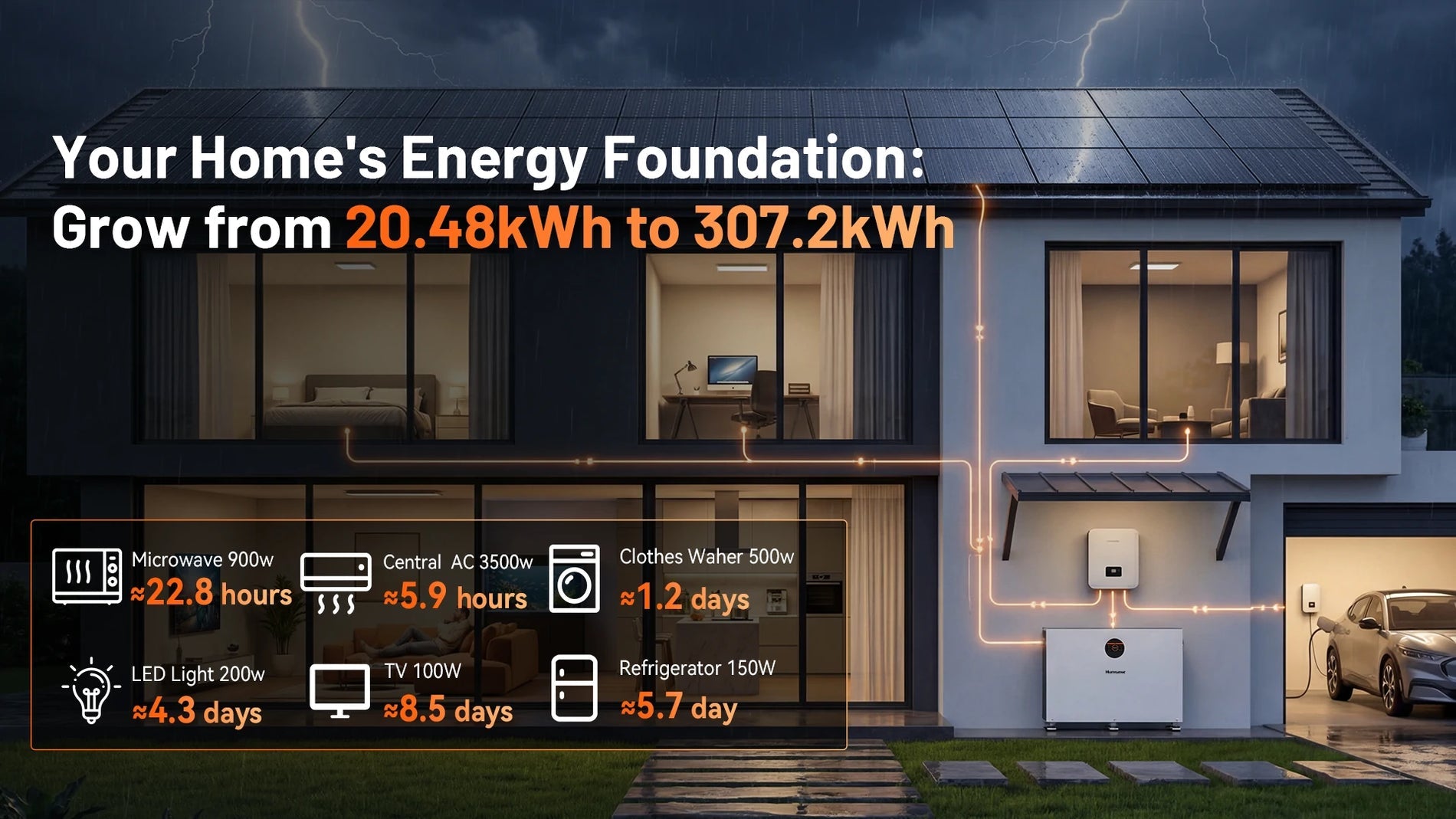

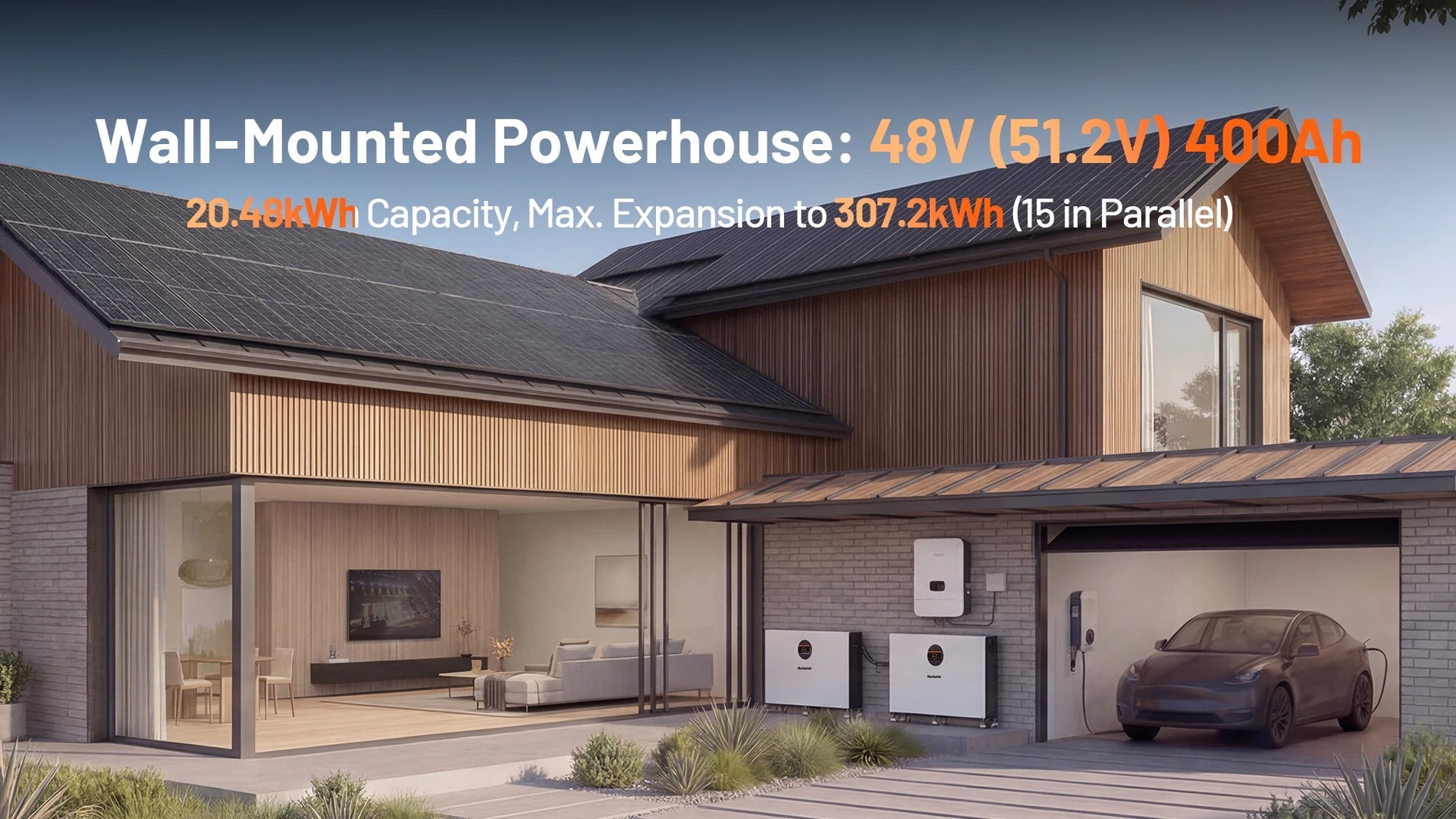

- Expandable to 15 Units (307.2kWh): Modular growth + includes install kit.
- Works from -4°F~140°F(-20°C to 60°C) Reliable in extreme heat or cold.

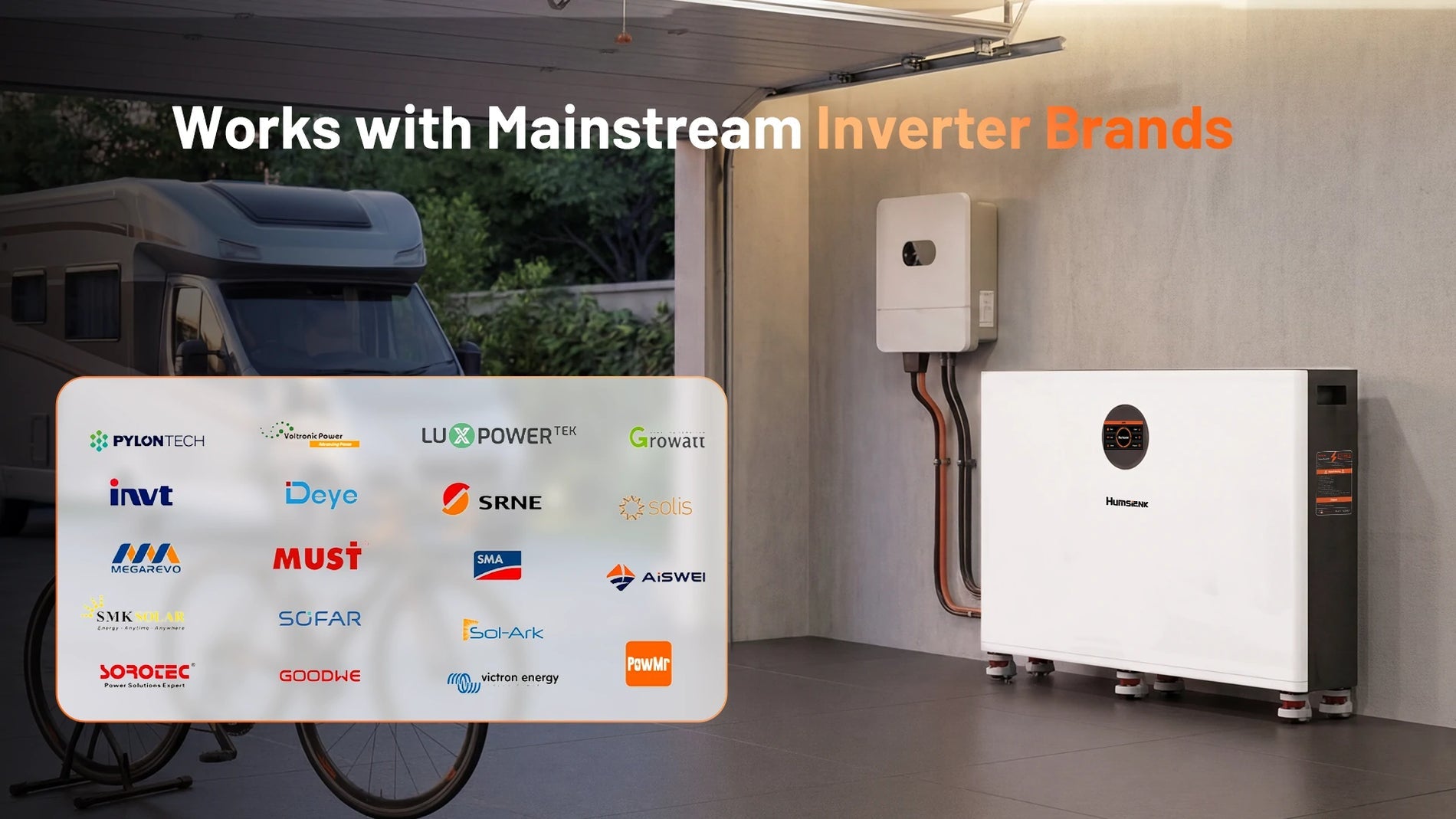

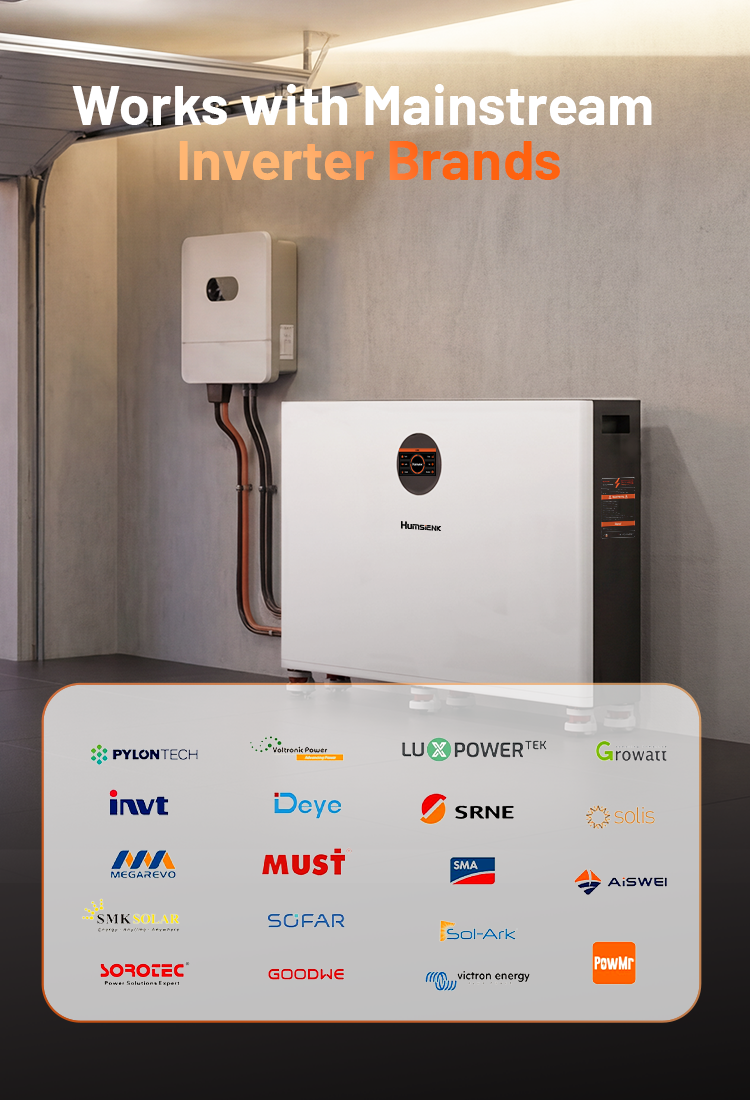

- Plug & Play with Major Inverters: Works with Victron, Growatt, SRNE via CAN/RS485/RS232.

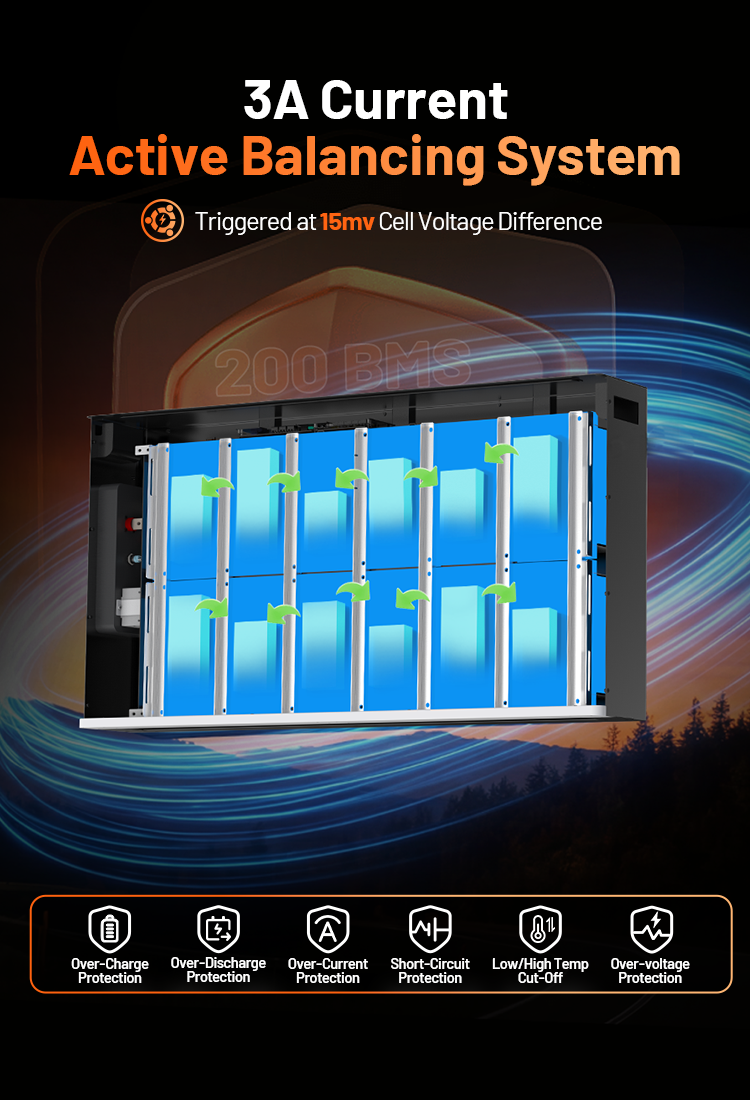

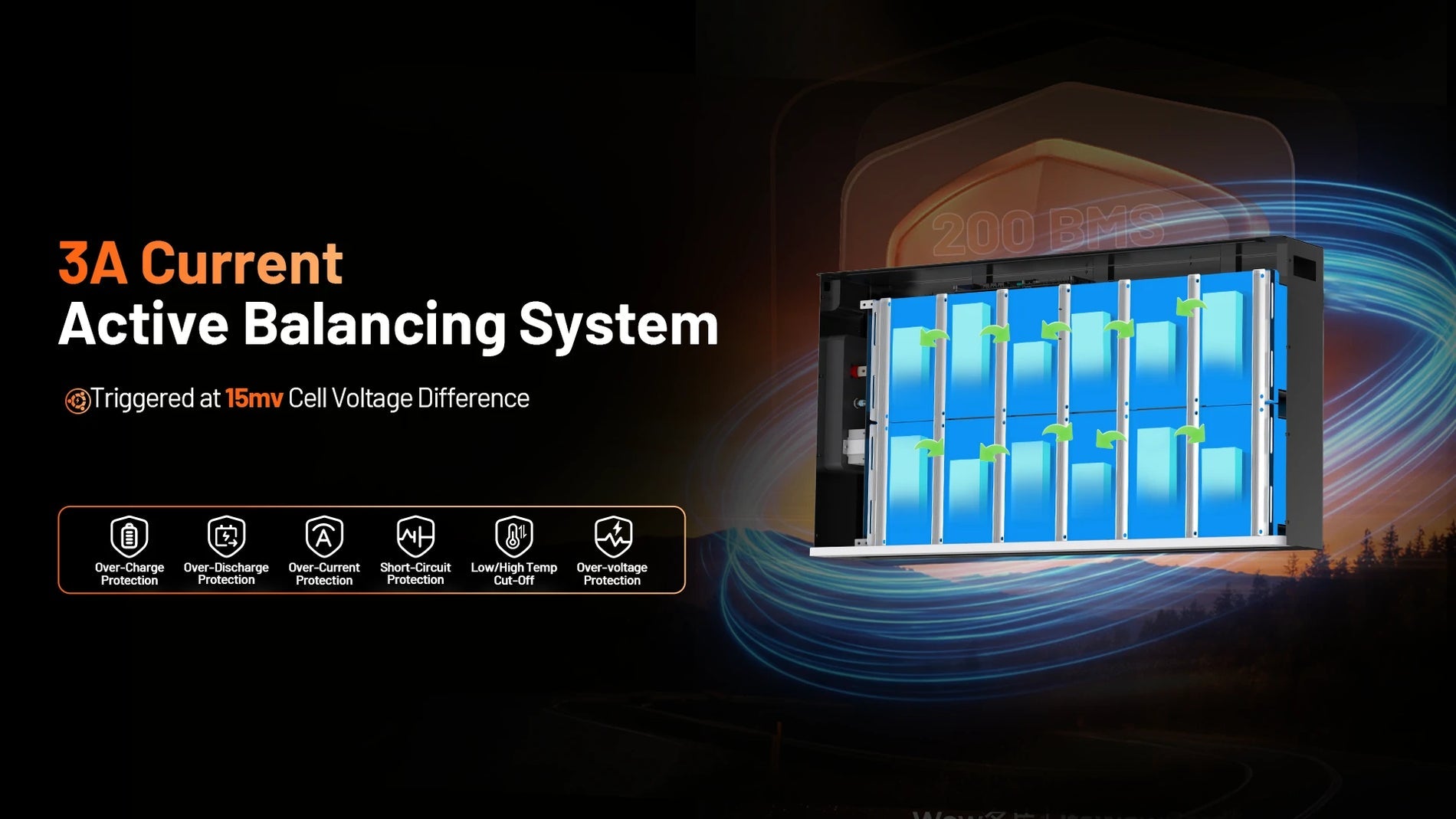

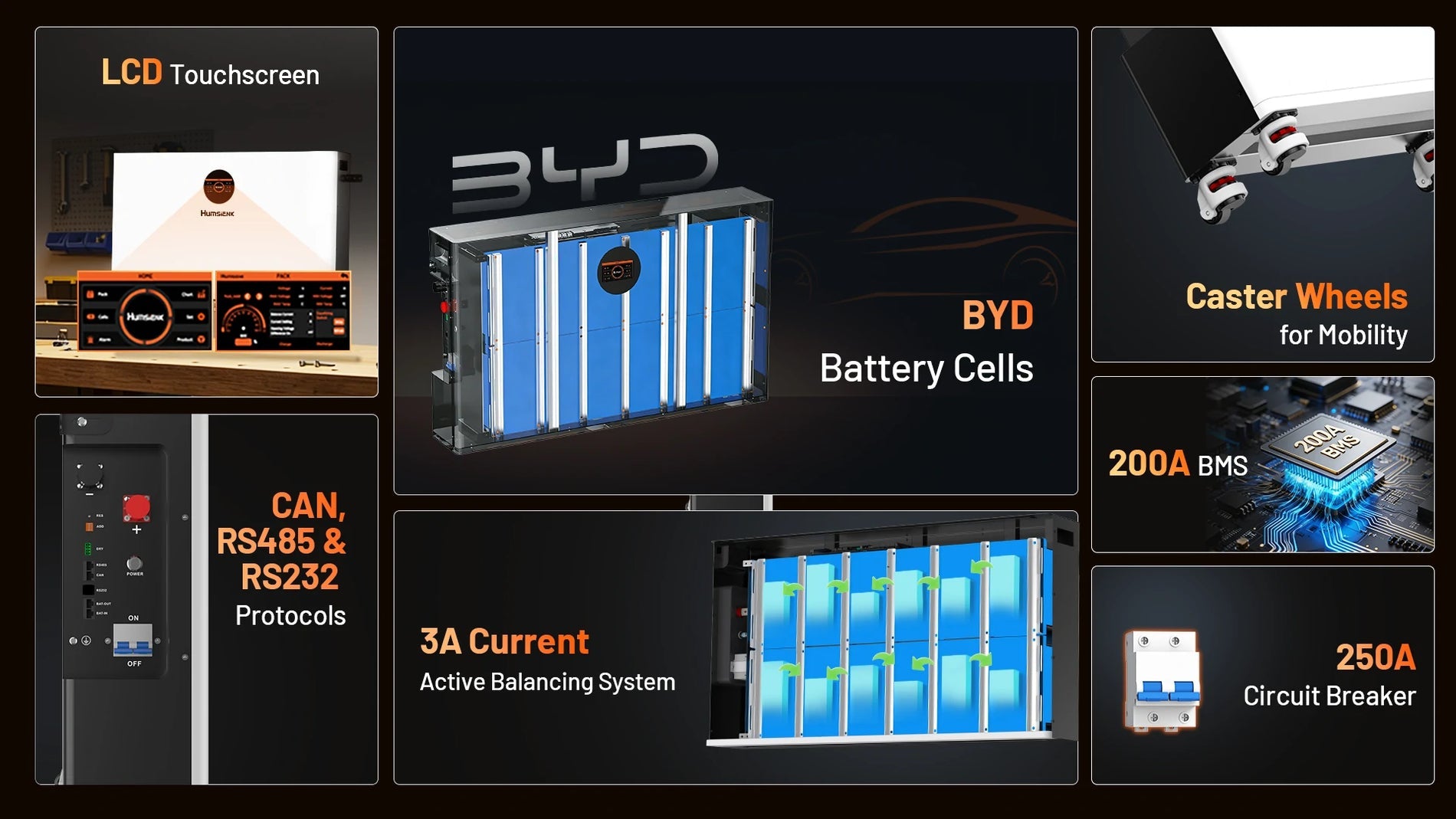

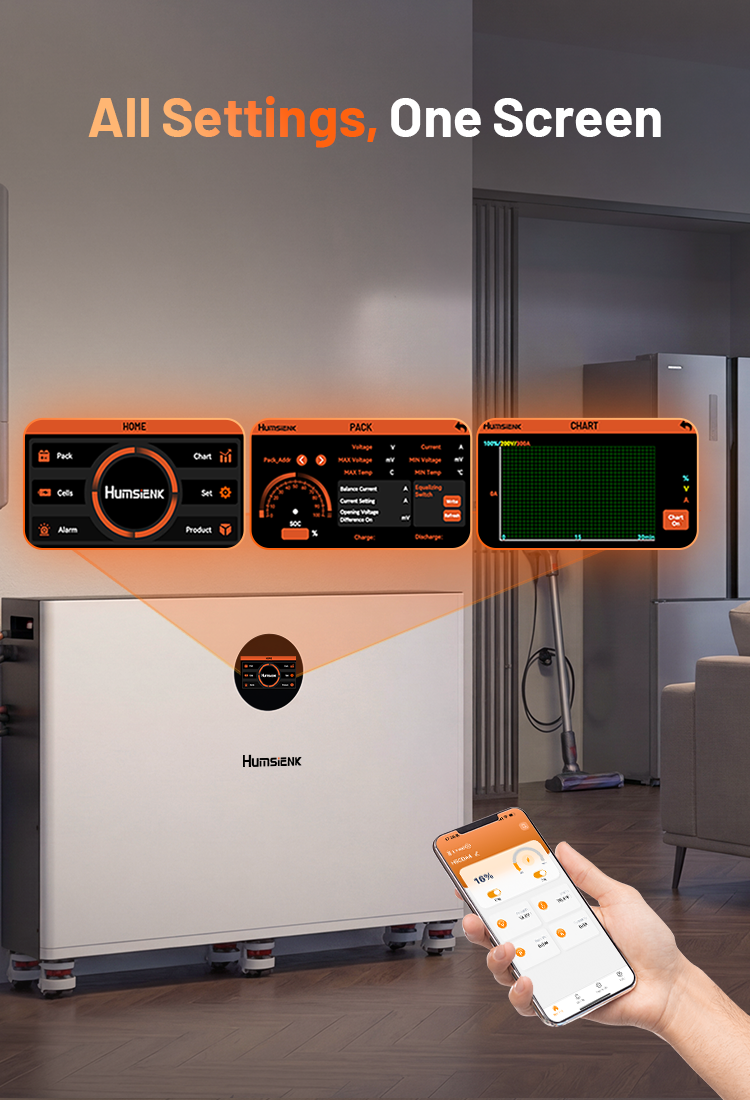

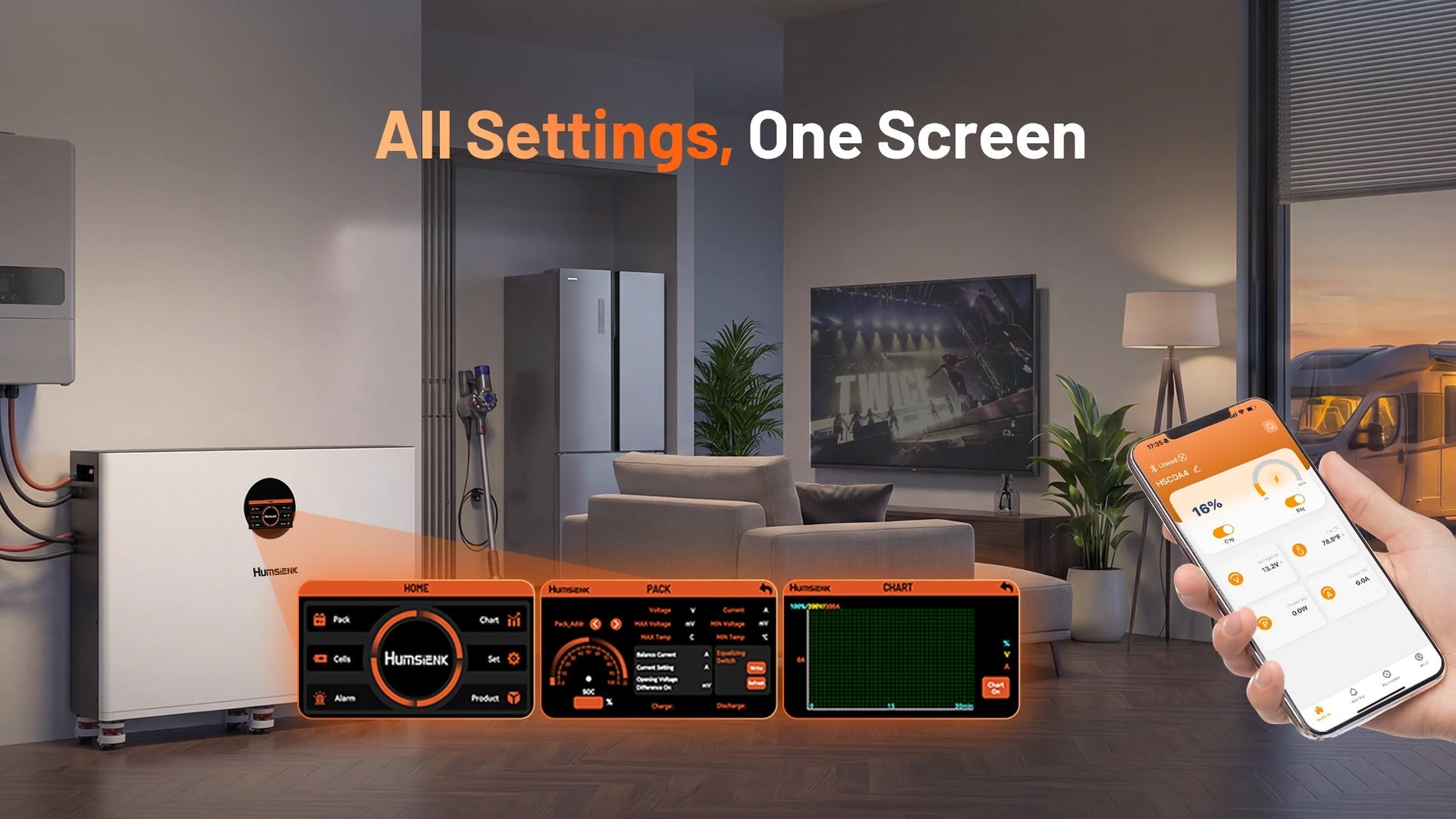

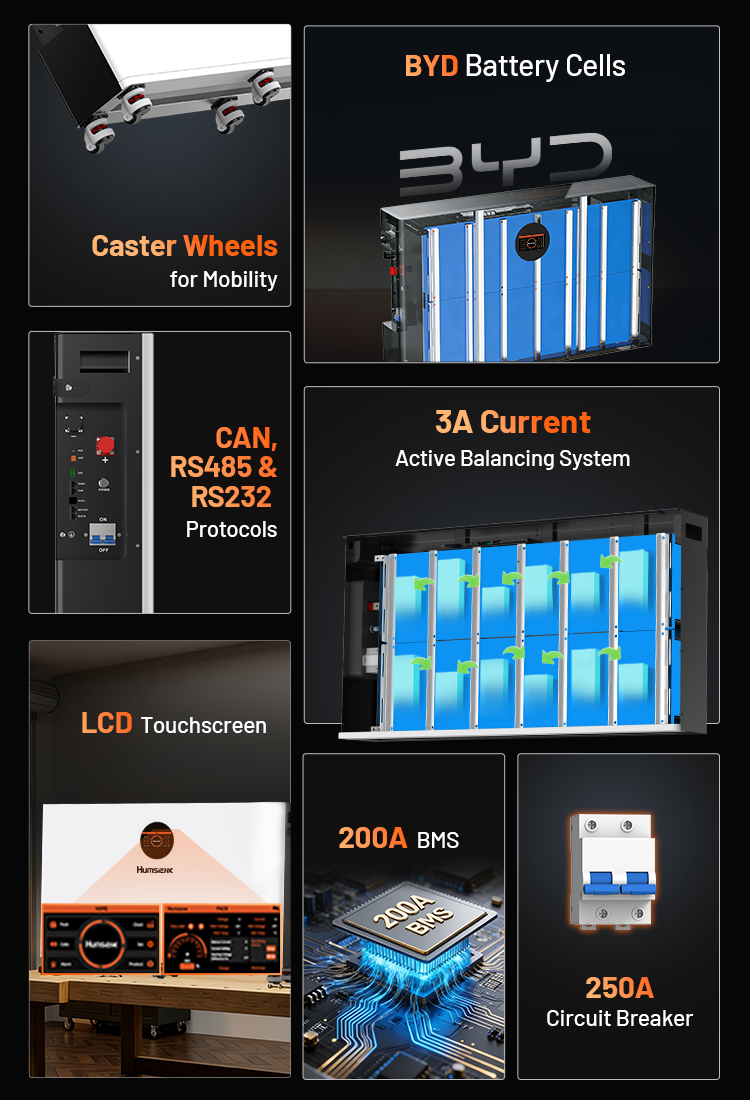

- Safe & Smart Management: Steel casing + active cell balancing (15mV) + Bluetooth/LCD monitoring.
🔋 Humsienk 48V LiFePO₄ Series
Premium deep-cycle storage | Grade A+ / BYD cells | Smart BMS & high efficiency
| Specification | 48V 100Ah | 48V 300Ah | 48V 314Ah | 48V 400Ah |
|---|---|---|---|---|
| Battery Cells | A+ | A+ | A+ | BYD |
| Shell Type | Metal | Metal | Metal | Metal |
| Terminal | Quick Connect | Quick Connect + M8 | Quick Connect | M8 |
| Size / mm (L×W×H) | 550 x 485 x 185 | 908 x 620 x 218 | 890 x 620 x 254 | 1251 x 200 x 741 |
| Weight | 50.0 ±0.5 kg | 118.0 kg ±3% | 133.5 ±0.5 kg | 186.0 kg ±5% |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 300Ah | 314Ah | 400Ah |
| Energy | 5.12kWh | 15.36kWh | 16.07kWh | 20.48kWh |
| Cycle Life | 6000 @ DOD80% | 6000 @ DOD80% | 6000 @ DOD80% | 6000 @ DOD80% |
| Self Discharge | ≤3% / Month | ≤3% / Month | ≤3% / Month | ≤3% / Month |
| Charge Voltage | 56.8-58.4V | 56.8-58.4V | 56.8-58.4V | 56.8-58.4V |
| Charge Mode | CC/CV | CC/CV | CC/CV | CC/CV |
| Recommended Charge | ≤20A | ≤60A | ≤62.8A | ≤80A |
| Max Charge | 100A | 200A | 200A | 200A |
| Recommended Discharge | 50A | 150A | 157A | 200A |
| Max Discharge | 100A | 200A | 200A | 200A |
| Cut-off Voltage | 40V | 40V | 40V | 40V |
| Charge Temp | 2°C~50°C | 0°C~55°C | 2°C~50°C | 0°C~55°C |
| Discharge Temp | -20°C~65°C | -20°C~60°C | -20°C~65°C | -20°C~60°C |
| Storage Temp | -20°C~45°C | 0°C~45°C | -20°C~45°C | 0°C~45°C |
| IP Rating | IP54 | IP54 | IP54 | IP20 |
