850 × 430 × 732 mm / 33.46 × 16.93 × 28.82 in
240.5 kg ±5% / 530.21 lb ±5%
IP54
0°C to 45°C / 32°F to 113°F
Wall-Mount Design
16S1P
Metal
LiFePO4 / LFP
51.2V
628Ah
Approx. 32.15kWh
40–58.4V
6,000 cycles @ 80% DOD
≤3% per month
100% @ 0.2C
96–99% @ 0.5C
200A
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
57.6V ±0.8V
CC/CV
≤125.6A
200A
200A
200A
40V
0°C to 55°C / 32°F to 131°F
-20°C to 60°C / -4°F to 140°F
100% @ 0.2C
96–99% @ 0.5C
M8
Smart Edition
CAN / RS485 / RS232 / Bluetooth
Bluetooth & LCD
IEC 62619, UN 38.3, RoHS, CE, FCC
5-Year Warranty

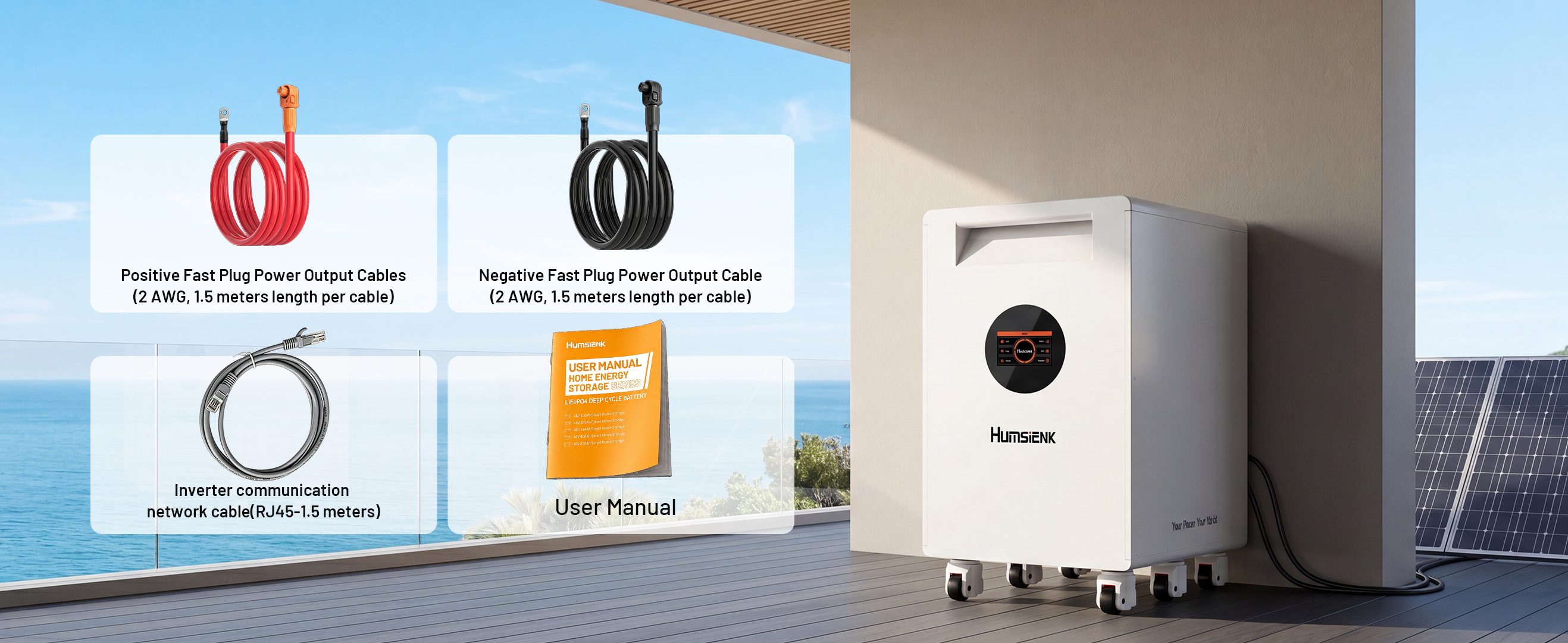

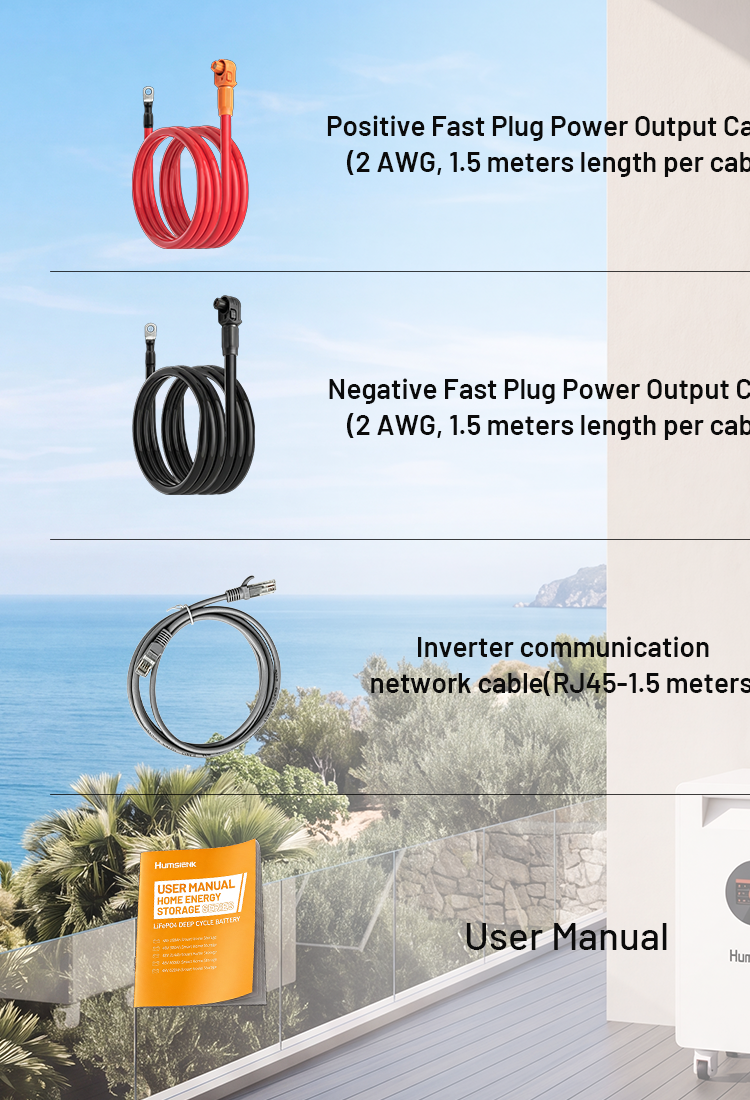

Battery Module
×1
Positive & Negative Fast-Plug Power Output Cables (2 AWG, 1.5 m each)
×2
Inverter Communication Cable (RJ45, 1.5 m)
×1
User Manual （ Installation, operation and safety instructions. ）
×1
User Manual & Specification Sheet · English PDFs
HAVEN supports CAN and RS485 battery communication interfaces. The Humsienk home energy storage manual provides inverter pairing information for brands including Deye, Victron, Growatt and GoodWe.
Compatibility varies by specific inverter model, firmware and communication protocol. Please contact Humsienk with your inverter model before ordering.
HAVEN supports a maximum continuous discharge current of 200A, equivalent to approximately 10.24kW of DC power at its nominal voltage of 51.2V.
The appropriate inverter rating depends on inverter efficiency, battery voltage, appliance starting loads, cable sizing and system configuration. Battery storage capacity does not determine inverter output power.
Yes. HAVEN can store energy from a compatible solar inverter or charge controller configured for 51.2V LiFePO4 batteries.

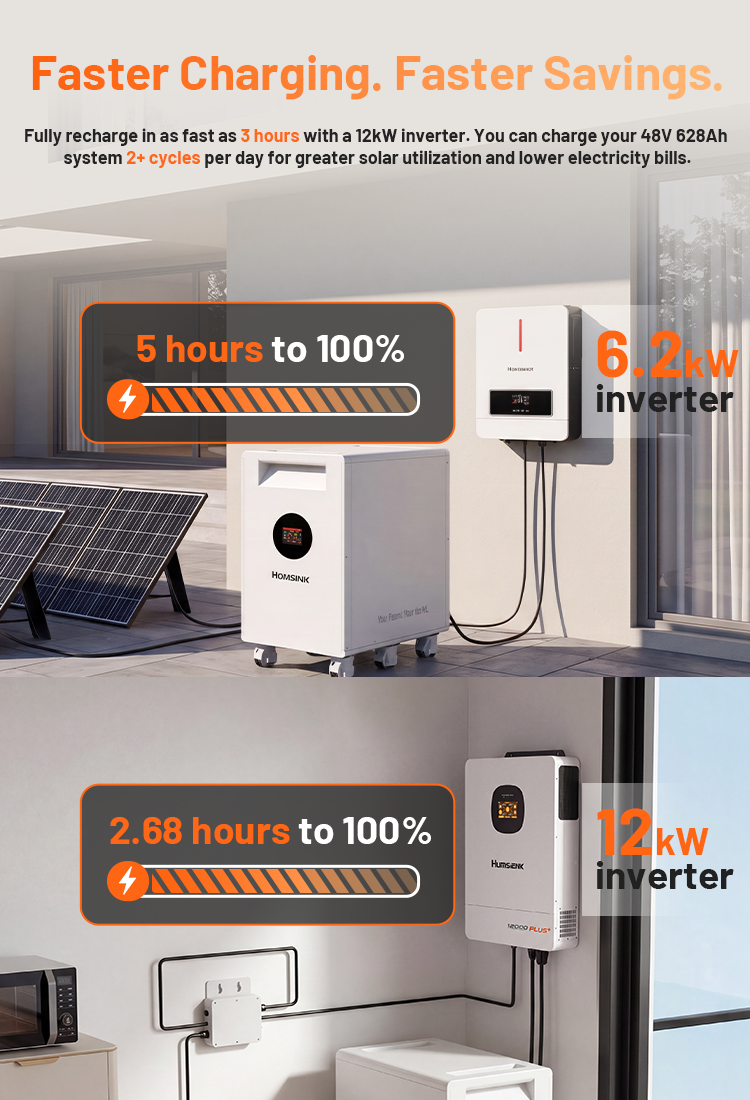

The specified charging voltage is 57.6V ±0.8V, with a recommended charging current of no more than 125.6A.
HAVEN has a nominal capacity of 628Ah at 51.2V, providing approximately 32.15kWh of nominal energy storage.
Actual usable energy depends on depth-of-discharge settings, battery conditions, inverter losses and overall system configuration.
Runtime depends on the power consumption of the connected appliances.
For example, a continuous 1kW load represents approximately 32 hours of theoretical runtime based on nominal capacity. Actual runtime will be lower after accounting for usable energy settings, inverter efficiency and other system losses.

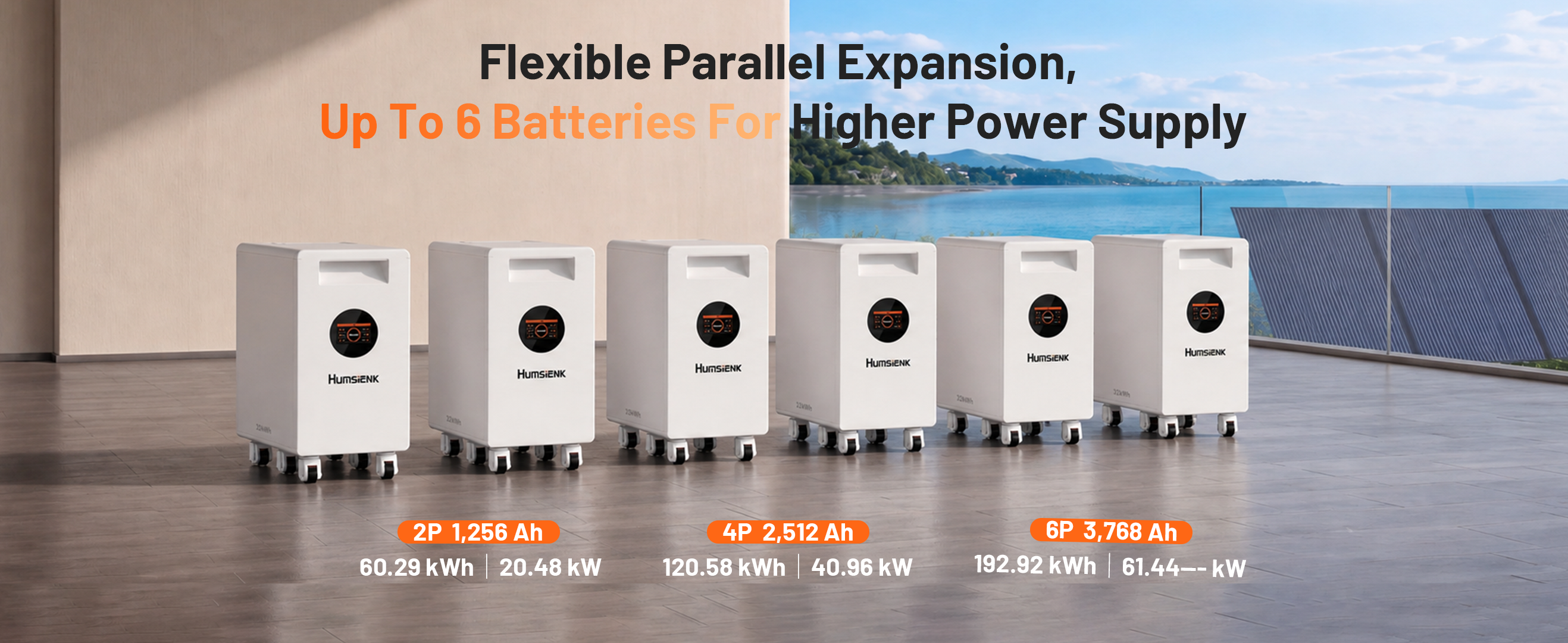

HAVEN is designed to support parallel battery connections for larger energy storage systems.
The maximum permitted number of batteries must be confirmed against the latest approved configuration for this model before installation. Only compatible batteries should be connected using the specified communication and electrical protection arrangements.
No. HAVEN is a battery-only energy storage product. A compatible inverter, appropriate electrical protection equipment and professional system installation are required.
The package includes battery power cables, an RJ45 communication cable and a user manual.
HAVEN has an IP54-rated metal enclosure, providing protection against limited dust ingress and splashing water.
It must be installed in a location that meets the manufacturer's environmental and safety requirements. Protection from direct rain, snow, strong sunlight and harsh conditions is recommended.
HAVEN weighs approximately 240.5kg, so suitable delivery access, unloading arrangements and appropriate handling equipment may be necessary.
Before ordering, confirm the delivery location, unloading capabilities, installation area, inverter compatibility and professional installation arrangements with Humsienk.
Watch real-world tests, in-depth reviews and teardowns of Humsienk home storage batteries.
Follow a real-life home solar project in Hawaii featuring the Humsienk 32kWh LiFePO4 battery and a 10kW inverter. See the battery unboxing, system preparation, and practical steps towards greater home energy independence.
Explore a real-world solar energy project in Hawaii as the creator prepares a dedicated space for a high-capacity home battery system. The video covers construction, equipment planning, and practical considerations for residential solar energy storage.
I am taking a look at the Humsienk 32 kwh lithium battery to break down its physical design and operational specs. This unit offers a substantial energy capacity for those looking to expand their off grid capability or add backup storage to their existing setup.
Is this massive Humsienk 48V 628Ah LiFePO4 battery the ultimate game-changer for off-grid solar systems, home backup, and high-capacity power builds? In today’s video, we break down every detail—from unboxing and build quality to real-world performance testing!
In this video, we’re taking portable power to a whole new level! I’m hooking up the EcoFlow DELTA directly to a massive Humsienk 48V 628Ah lithium battery bank to create the ultimate semi-portable power station setup. If you want insane capacity and endless off-grid runtime without spending a fortune on proprietary expansion units, this DIY setup is a total game changer.

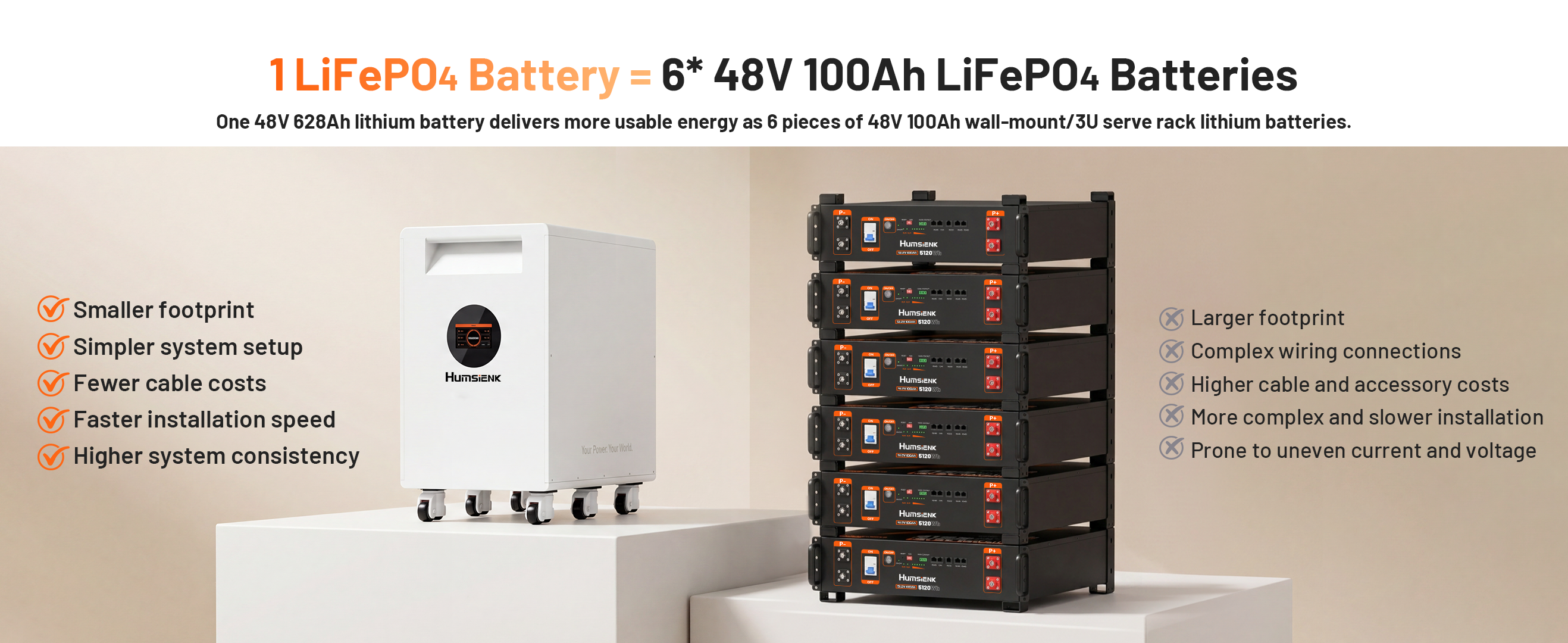

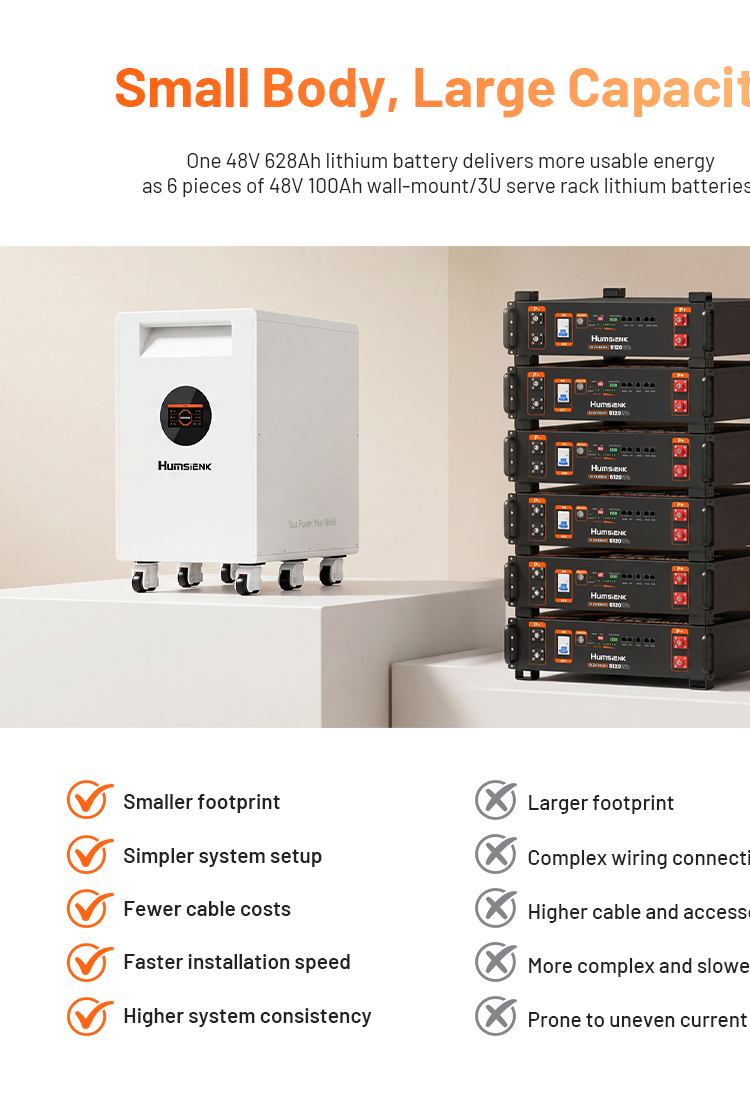

Hey guys I just got this brand new Humsienk 48 volt 628ah 32KWH Lifepo4 Battery. This beast replaces 6 standard server rack batteries. Its a nice looking unit, tested good, did amazing in the capacity test, but the internal wiring needs some serious work, especially if they want people to spend 4500 on a battery. The limited 200 amp output may leave some performance on the table as well, I think at least 250 amp would be way better. Battery terminals also need some work.
