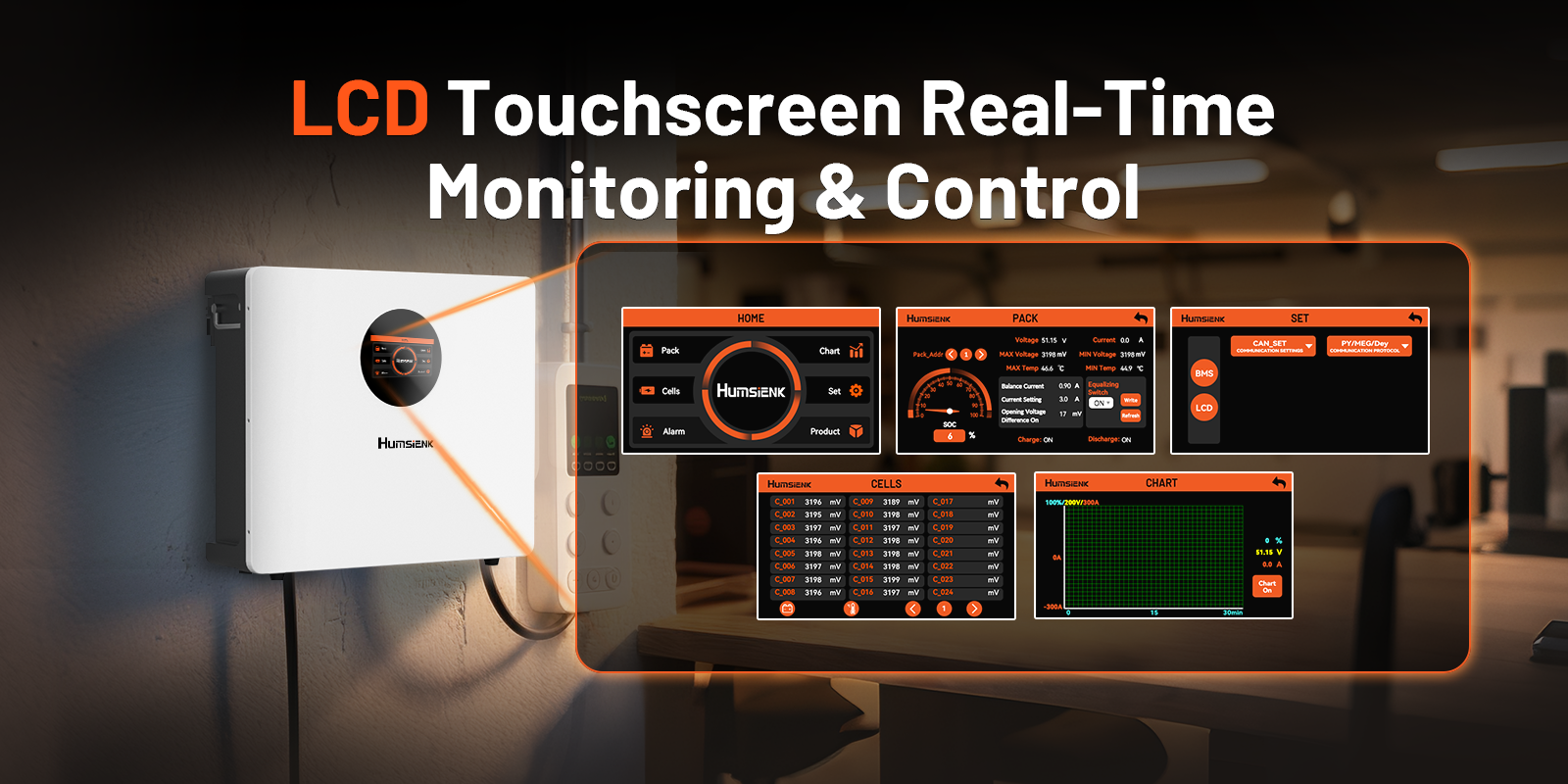

  • LCD Control
  • Multi-Protocol
  • BMS Active Balancing
  • UN 38.3
  • IEC 62619

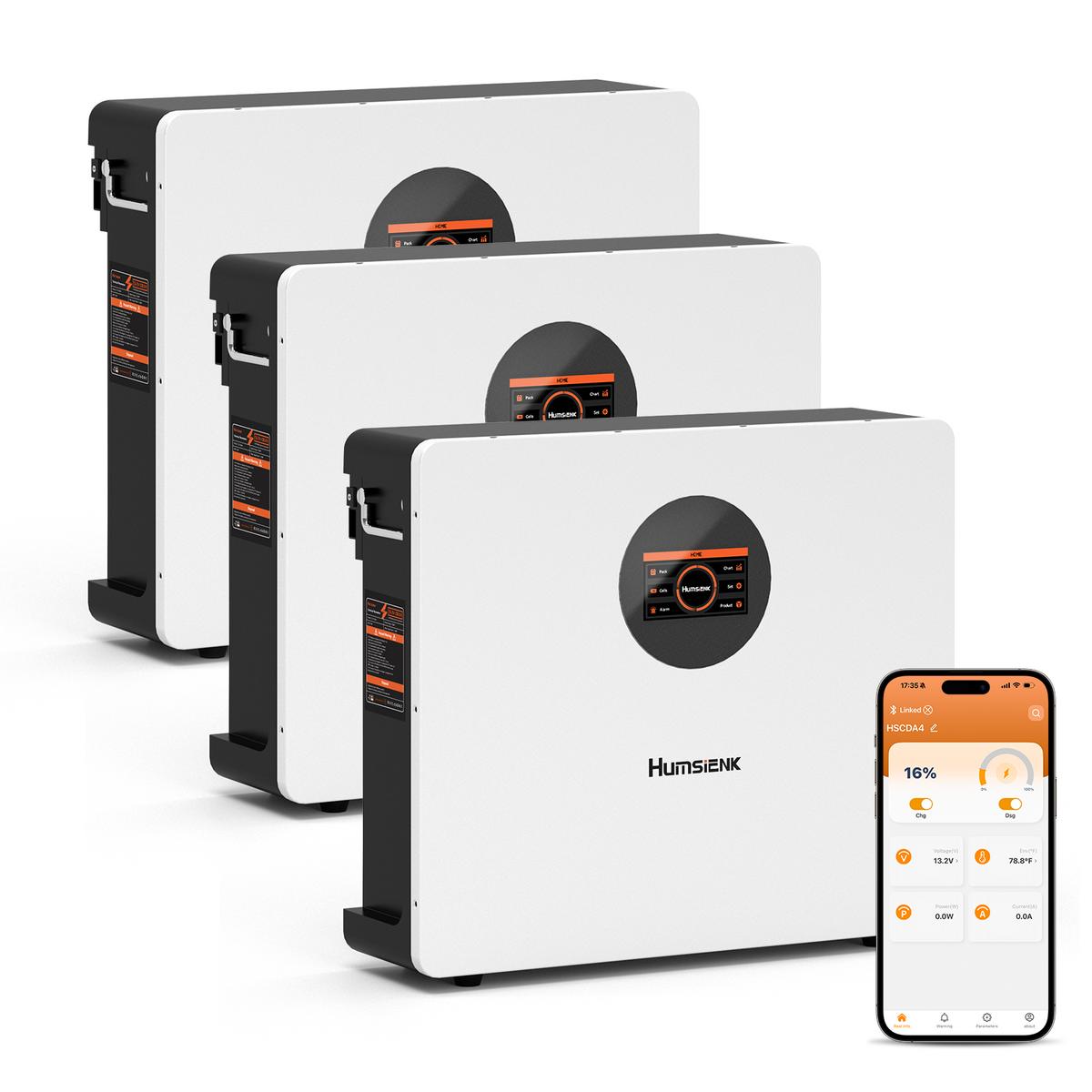

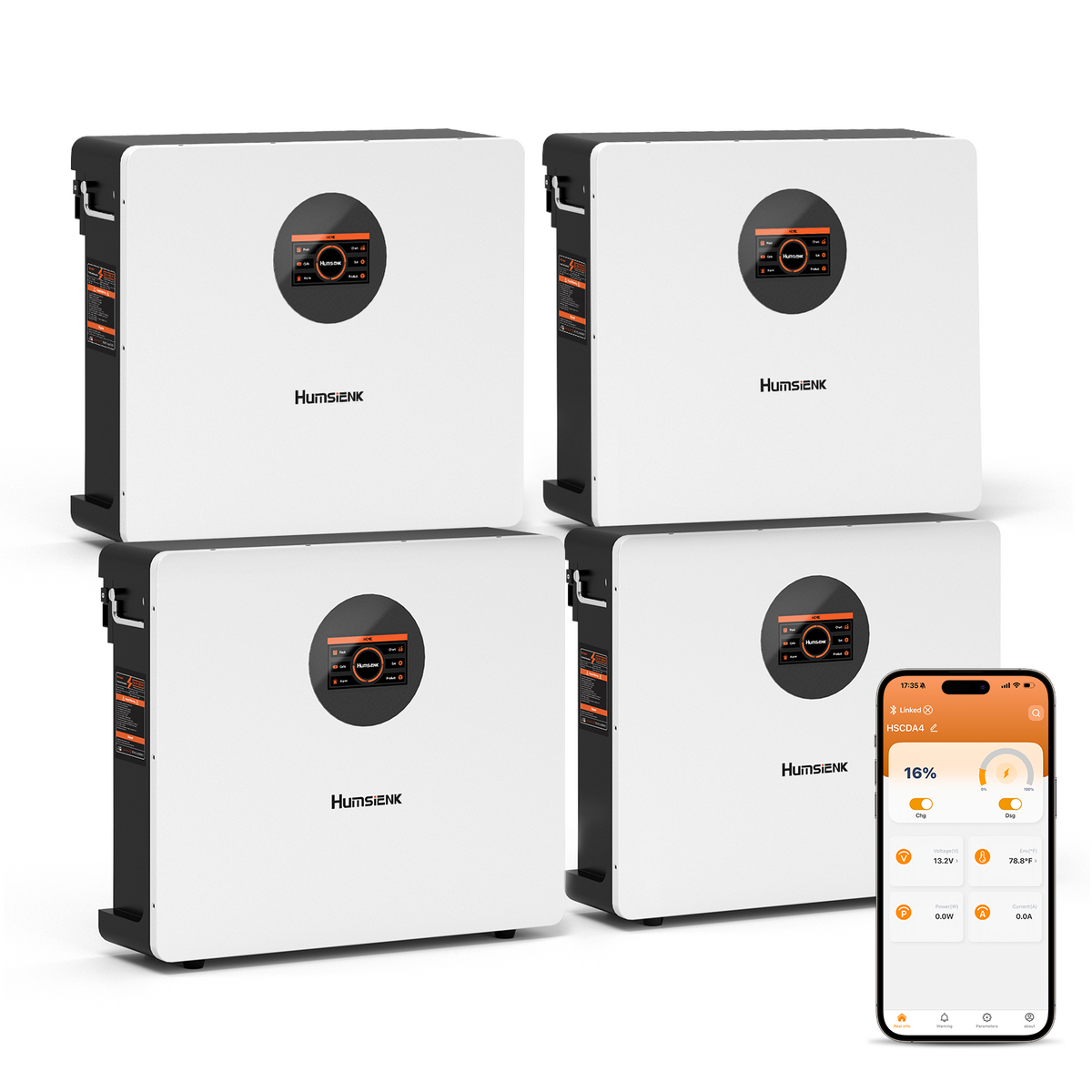

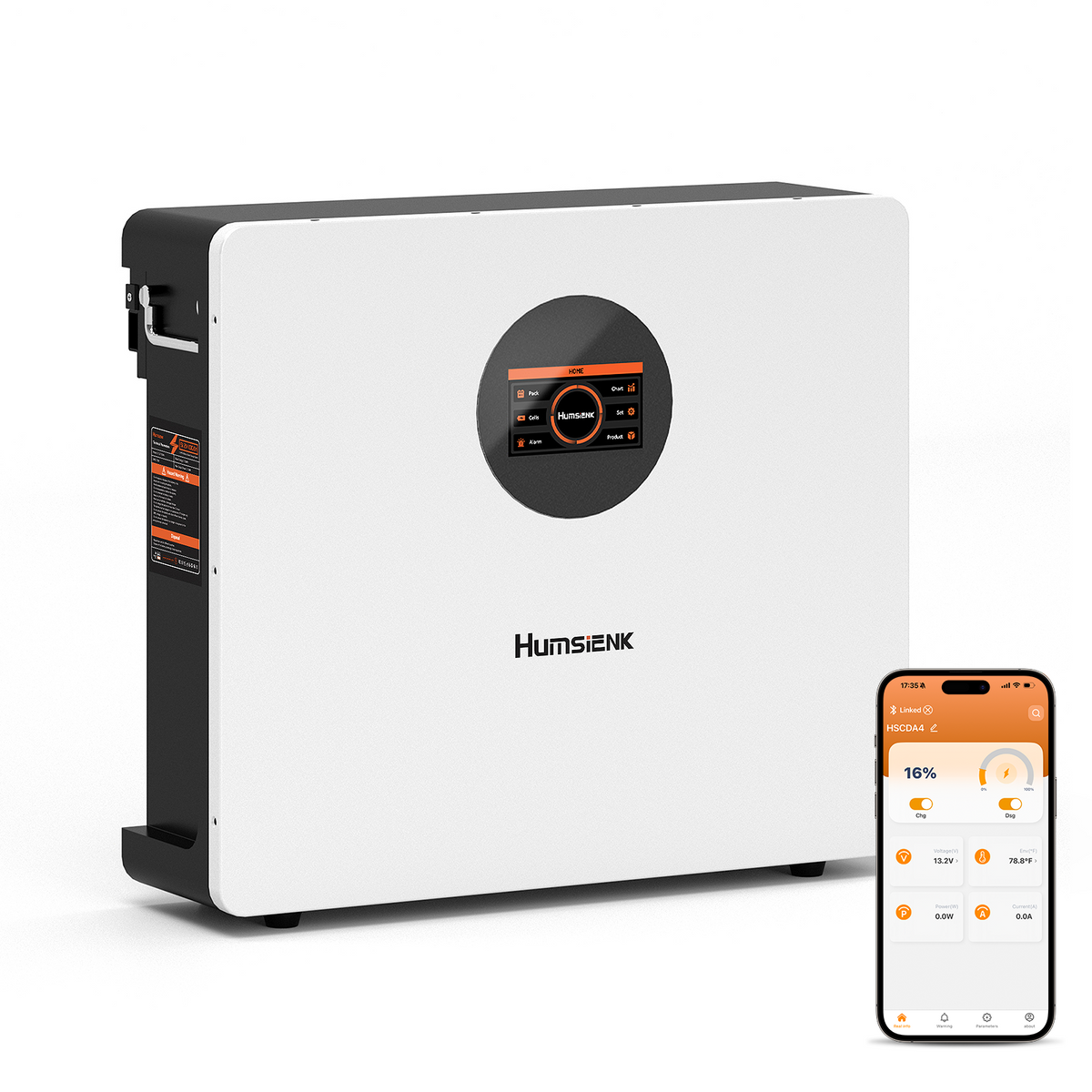

Humsienk -Humsienk 48V (51.2V) 100Ah 5.12kWh Wall-Mount Bluetooth LiFePO4 Battery with 100A BMS & 3A Active Balancing

$1,499.99$1,699.90Save $199.91 (11%)
5% off Coupon
with Code: HSBD5
Limited Time Offer
SUMMER10 · 10% OFF

Use code at checkout. Limited time only.

Flash Sale ends in
00 D
00 H
00 M
00 S
5.12kWh Wall-Mount Battery for 48V Inverter & Off-Grid Systems

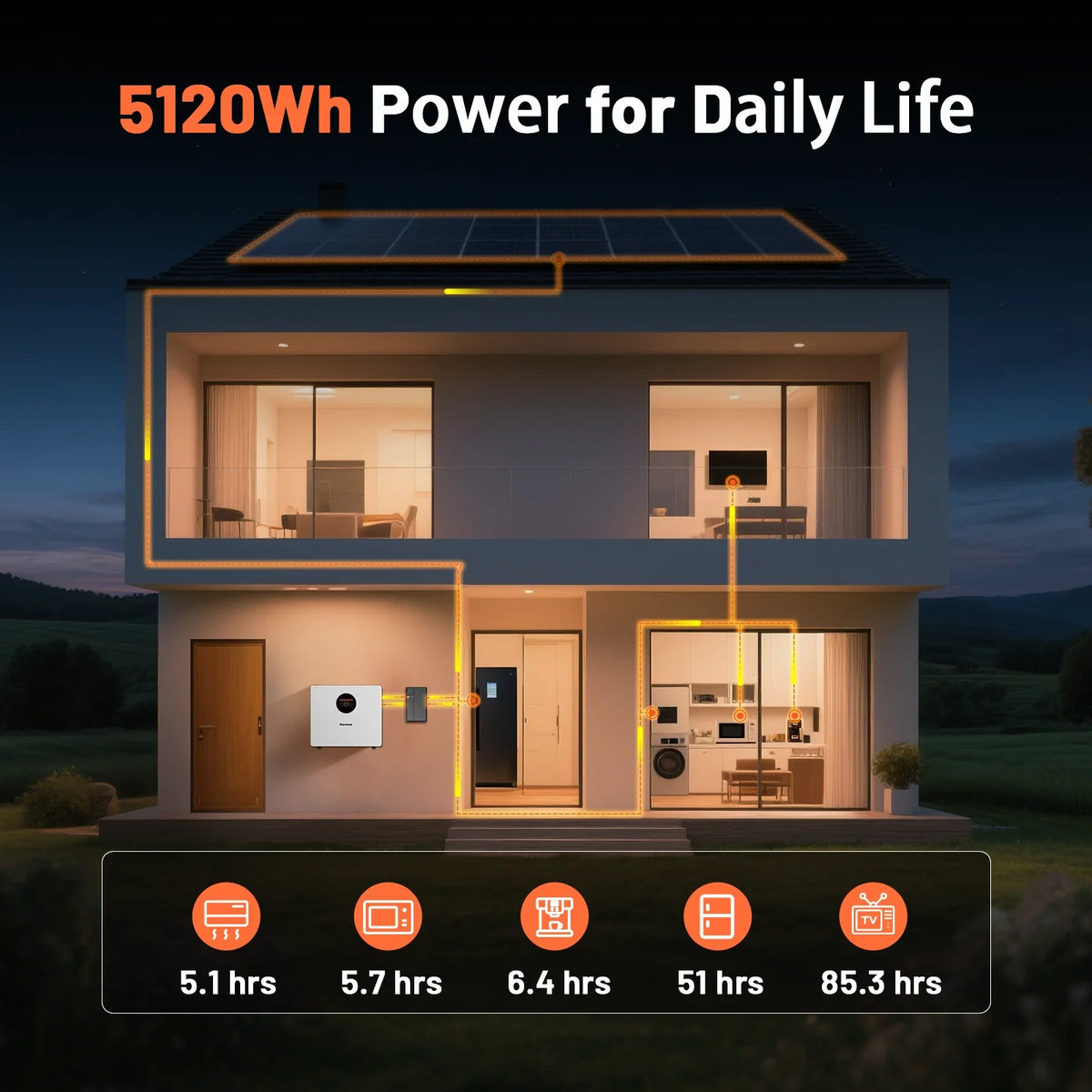

5.12kWh of Usable-Scale Energy Storage
Store solar energy for overnight use, backup power and everyday off-grid energy needs in a compact 51.2V battery.

Built for 48V Low-Voltage Inverter Systems
Designed for compatible 48V-class inverter and charger systems, making it a practical battery platform for Australian off-grid and solar storage setups.

100A Continuous Power Capability
Supports up to 100A continuous discharge, equivalent to approximately 5.12kW of DC power at nominal voltage, for appropriately designed inverter systems.*

6,000 Cycles at 80% DOD
Rated for 6,000 cycles at 80% depth of discharge for dependable long-term solar and off-grid energy storage.

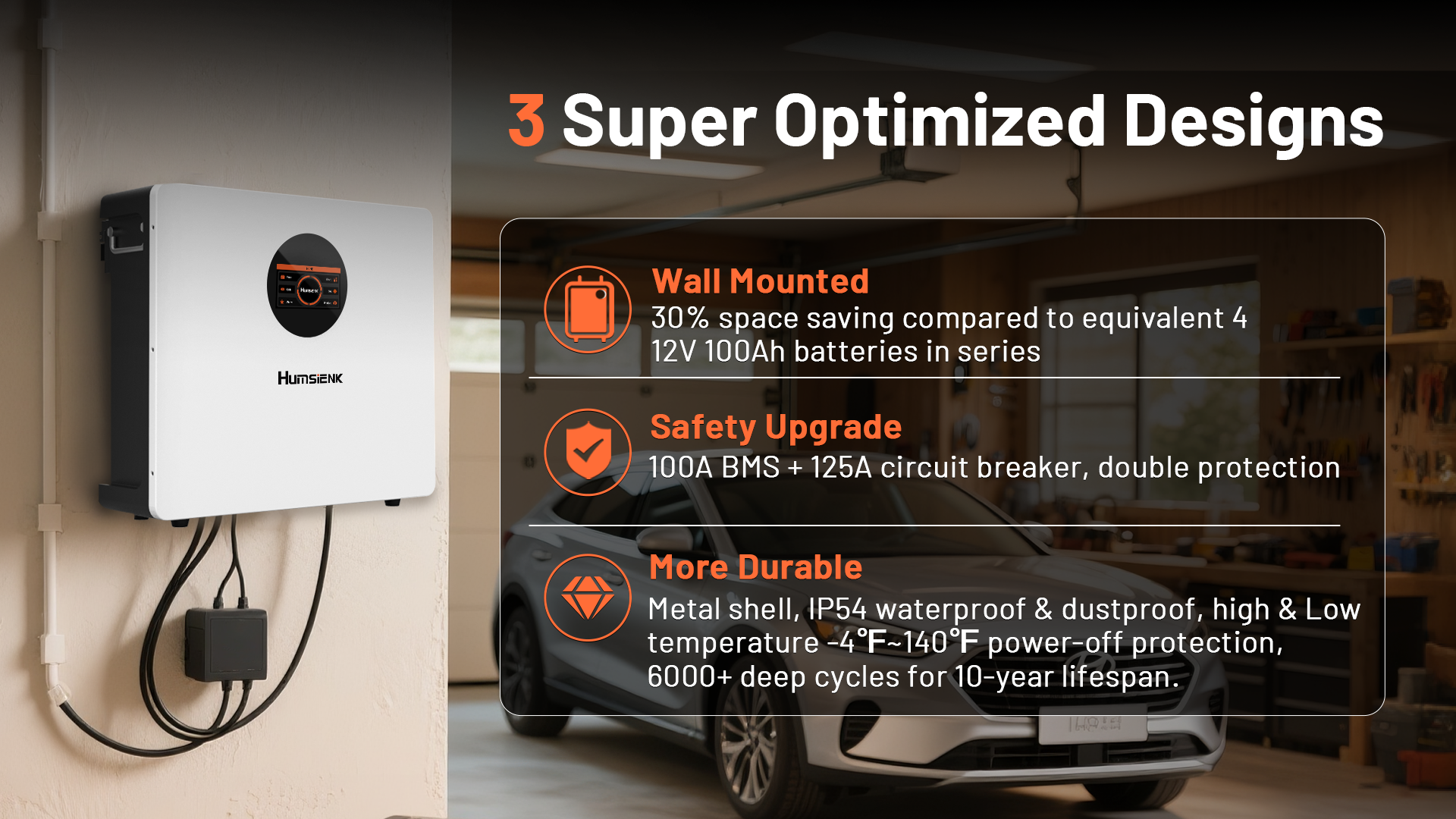

Wall-Mount Metal Design
The slim metal enclosure keeps the battery organised and space-efficient for residential, cabin, shed and dedicated energy storage installations.

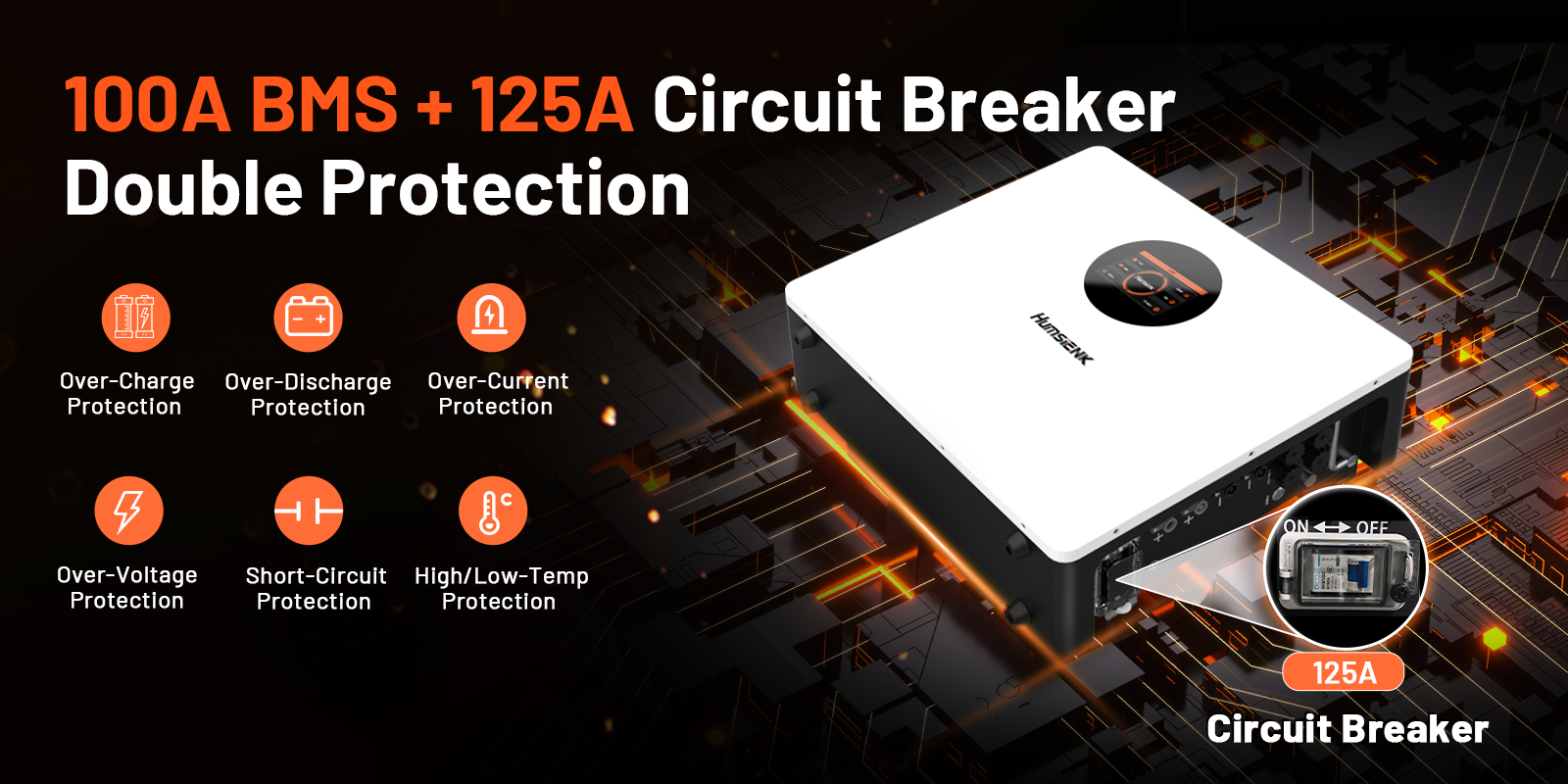

Integrated 100A BMS Protection
Built-in protection covers over-charge, over-discharge, over-current, over-voltage, high and low temperatures, and short circuits.     HS48V100AH100WALLBTNEW规格书-V1.2-…

*Approximate DC power calculated from nominal voltage × continuous discharge current. Actual inverter AC output depends on inverter efficiency, surge requirements, voltage conditions and overall system design.

Hurry! Only--items left in stock!

Options:
$1,499.99$1,699.90

Special Add-Ons

Humsienk - 48V (58.4V) 15A LiFePO4 Battery Charger

Humsienk - 48V (58.4V) 15A LiFePO4 Battery Charger

$299.90
Humsienk Dedicated Quick-Connect Cable for 48V 314Ah Home Storage Battery

Humsienk Dedicated Quick-Connect Cable for 48V 314Ah Home Storage Battery

$189.99
[Inverter Connection Cable] Humsienk Dedicated Single-ended Quick-Connect Cable for 48V 314Ah Floor-standing Battery

[Inverter Connection Cable] Humsienk Dedicated Single-ended Quick-Connect Cable for 48V 314Ah Floor-standing Battery

$139.99

This is a rich text block. You can add headings, links, lists, and more. This is a rich text block. You can add headings, links, lists, and more.

Designed for compatible 48V low-voltage inverter systems in off-grid homes, solar storage, cabins, sheds, workshops and backup power setups. With 5.12kWh of nominal storage and 100A continuous discharge capability, it provides a practical foundation for smaller energy systems or expandable multi-battery installations where supported.

Dispatched from our Australian warehouses, subject to stock availability. Free shipping is available to most areas in Australia; additional shipping fees may apply to some remote locations. Delivery times vary by location. View our Shipping Policy.

This battery is backed by a 5-year warranty. For product or after-sales support, please contact our team with your order number and issue details. View our Warranty Policy.

  • Fast Australian Dispatch
  • Price Guarantee
  • Global Warranty
  • Expert After-Sales Support
Payment Method
  • visa
  • master
  • paypal
  • apple pay
  • afterpay
  • american express
  • shopify pay
  • klarna
  • discover
  • diners club
Humsienk -Humsienk 48V (51.2V) 100Ah 5.12kWh Wall-Mount Bluetooth LiFePO4 Battery with 100A BMS & 3A Active Balancing
Humsienk -Humsienk 48V (51.2V) 100Ah 5.12kWh Wall-Mount Bluetooth LiFePO4 Battery with 100A BMS & 3A Active Balancing
$1,499.99
$1,699.90

High-Performance BMS

Enjoy dependable power and long-lasting performance for your everyday energy needs.

5.12kWh

Energy Capacity

100A

Continuous Discharge

6,000 Cycles

Cycle Life · 80% DOD

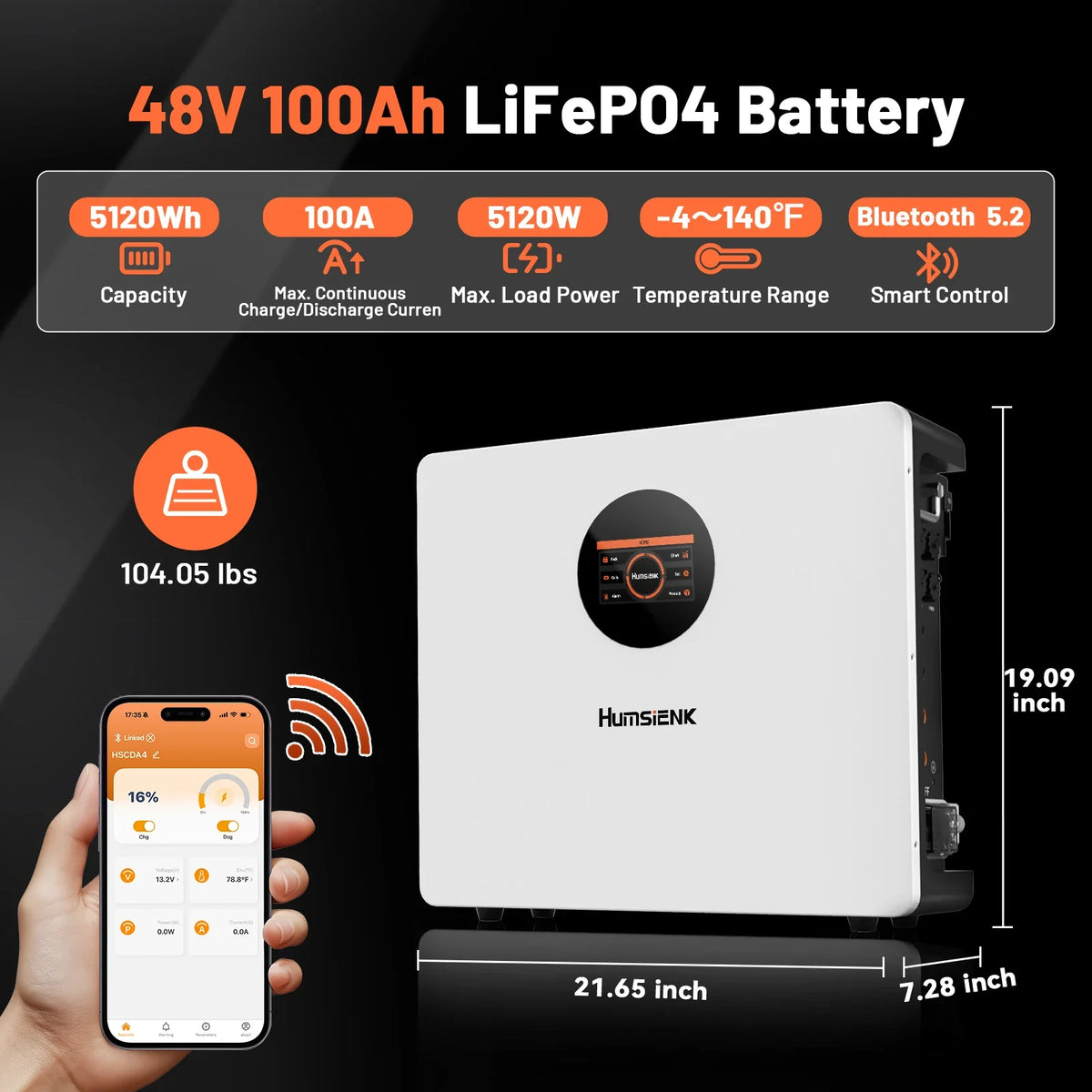

Specifications

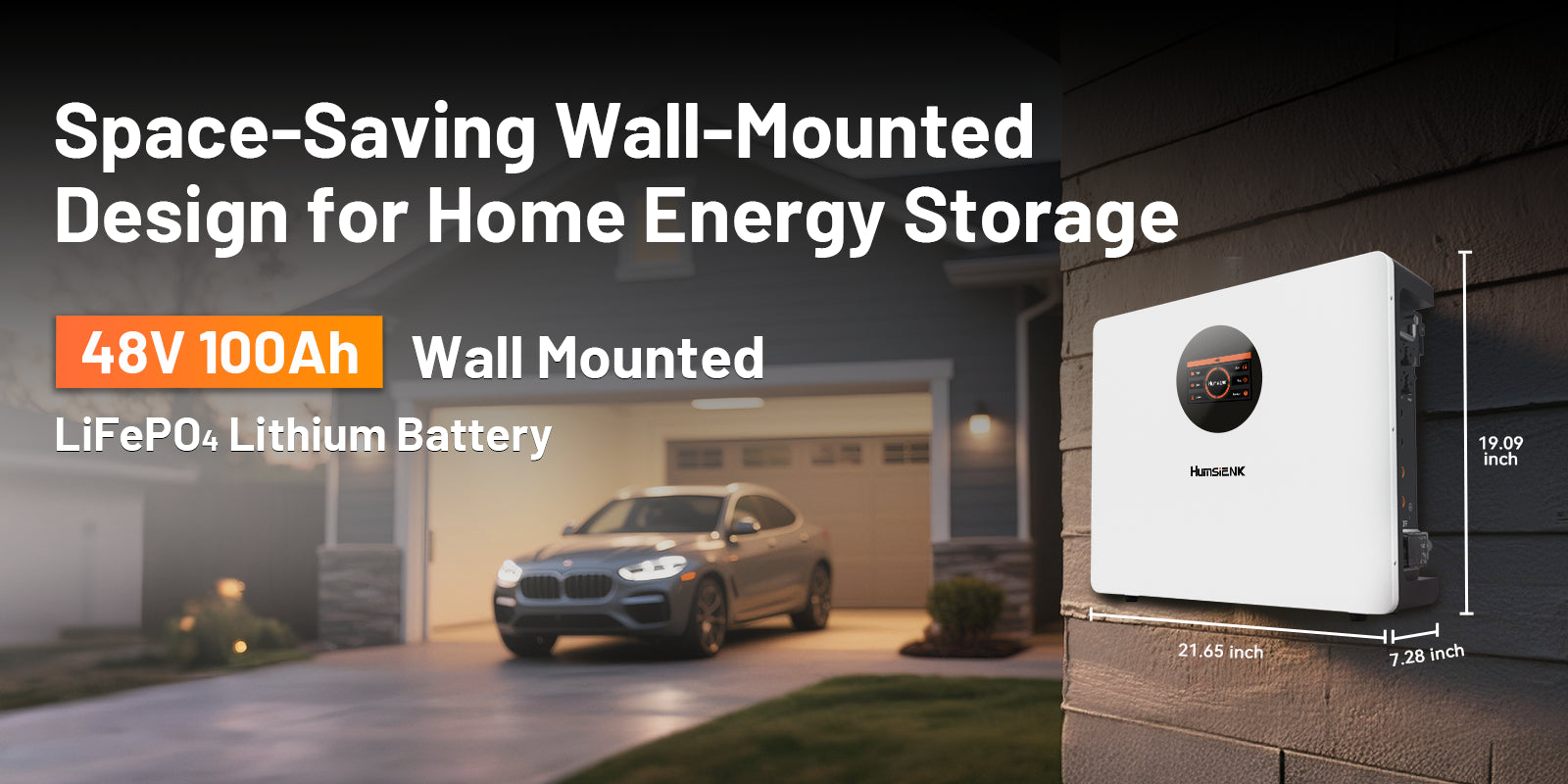

Dimensions (L × W × H)

550 × 485 × 185.5 mm / 21.65 × 19.09 × 7.30 in

Weight

44.9 kg ±3% / 99 lb ±3%

Protection Rating

IP54

Storage Temperature

0°C to 45°C / 32°F to 113°F

Installation Style

Wall-Mount Design

Housing

Metal

Battery Chemistry

LiFePO₄

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Energy

5,120Wh / 5.12kWh

Cycle Life

6,000 cycles at 80% DOD

Self-Discharge

≤3% per month

Charge Efficiency

100% @ 0.2C

Discharge Efficiency

96–99% @ 0.5C

BMS Rating

100A

Over-Charge Protection

Yes

Over-Discharge Protection

Yes

Over-Current Protection

Yes

Over-Voltage Protection

Yes

Charging High-Temperature Protection

Yes

Charging Low-Temperature Protection

Yes

Discharging High-Temperature Protection

Yes

Discharging Low-Temperature Protection

Yes

Short-Circuit Protection

Yes

Charge Voltage

57.6V ±0.8V

Charge Mode

CC/CV

Recommended Charge Current

20A

Max. Continuous Charge Current

100A

Recommended Discharge Current

50A

Max. Continuous Discharge Current

100A

Approx. DC Output at Nominal Voltage

5.12kW*

Discharge Cut-Off Voltage

40V

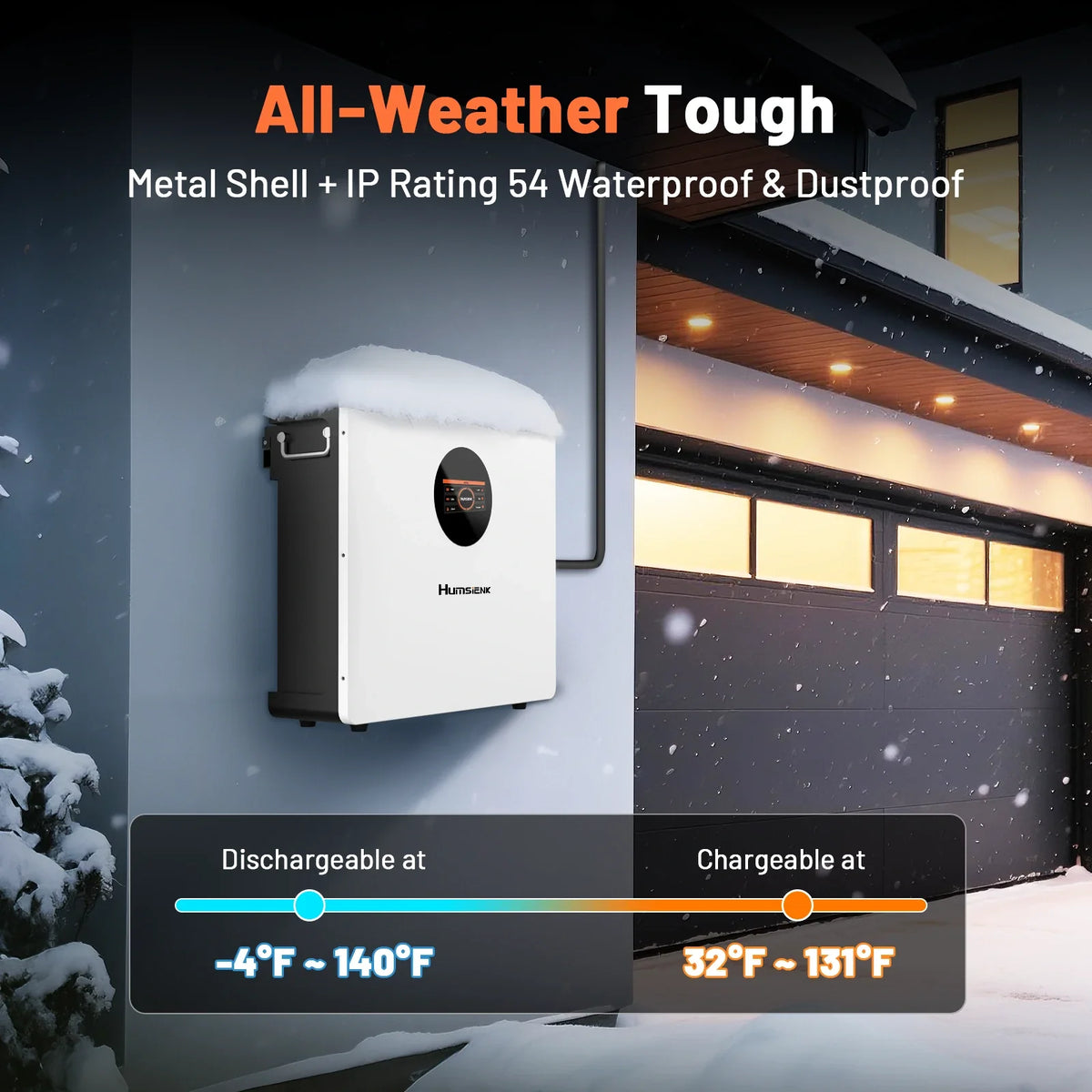

Charge Temperature

0°C to 55°C / 32°F to 131°F

Discharge Temperature

-20°C to 60°C / -4°F to 140°F

Charge Efficiency

100% @ 0.2C

Discharge Efficiency

96–99% @ 0.5C

Terminal

M8

Smart Function

Smart Edition shown on datasheet

Certification

IEC 62619, UN 38.3, RoHS, CE, FCC

Warranty

5-Year Warranty

What's in the Box

Battery

×1

Wall-Mounted Fixing Plate

×8

Support Bracket

×1

Wall Hook

×2

Positive & Negative Power Cables (4 AWG, 1.5 m)

×2

Communication Cable (RJ45, 1.5 m)

×1

User Manual

×1

M10 × 100 mm (3.94 in) Pull-Out Bolt x 2, M6 × 12 mm (0.47 in) Combination Screw x 4 , M4 × 8 mm (0.31 in) Screw x 4

×1

Product Documents

48V 100Ah Smart Home Storage

User Manual & Specification Sheet · English PDFs

  • IEC 62619
  • UN 38.3
  • RoHS
  • CE
  • FCC

Which 48V Home Storage Battery Is Right for You?

Compare Humsienk 48V LiFePO4 rack and wall-mounted batteries by capacity, design and features to find the right fit for your home solar and backup power needs.

PRODUCT

48V 100AH 3U RACK BT

48V 100AH WALL BT

Capacity100Ah /5.12kWh100Ah /5.12kWh
Dimensions500 × 440 × 133 mm550 × 485 × 185.5 mm
Weight41.35 kg44.90 kg
BMS Current100A100A
Bluetooth
Max Power5,120W5,120W
IP RatingIP20IP54
Best ApplicationOff-Grid Cabins, Workshops & Modular Solar StorageHome Solar, Backup Power & Small Off-Grid Homes
Price (AUD)$299.99$1,499.99

Frequently Asked Questions

It may suit selected 48V lead-acid versions of Club Car Precedent and E-Z-GO RXV. The system class is 48V; the battery’s nominal voltage is 51.2V. Check your cart’s year, controller compatibility and the 593 × 266 × 217mm installation envelope, with terminal clearance and secure mounting. Factory-lithium versions require separate compatibility assessment.

The battery stores 5.12kWh nominally; an 80% discharge window gives approximately 4.10kWh before losses. The datasheet provides no validated distance or hole-count test. Range depends on terrain, passengers, speed, tyres and vehicle efficiency. For planning, divide available energy by your cart’s measured energy consumption per kilometre.

The continuous battery-current rating is 200A. Hill starts, heavier passenger loads and upgraded motors can increase demand. Check sustained and start-up battery-side current with your installer before changing controller settings. Peak discharge current and duration are not provided in the datasheet, so surge capability needs confirmation for the intended vehicle.

One suitable 51.2V lithium battery can replace a compatible 48V lead-acid bank, such as six 8V, eight 6V or four 12V batteries. The conversion needs appropriate mounting, cables, fusing and charging connections. Check the original onboard charging controls and battery gauge for lithium compatibility; additional adaptors or configuration may be required.

Use a manufacturer-approved LiFePO4 charger. The datasheet specifies 57.6V ±0.2V CC/CV charging, recommends 20A and limits continuous charging to 100A. An existing lead-acid charger requires compatibility confirmation. From empty, capacity/current estimates are about 5 hours at 20A or 6.7 hours at 15A, plus the final charging stage and any load allowance.

Use a properly rated 48V-to-12V DC–DC converter for 12V accessories. Check that any existing converter accepts the lithium battery’s operating voltage range and can supply the combined accessory load. Review accessory wiring during the conversion. Connect 12V equipment to the converter output, rather than directly to the battery.

Yes. Install the official Humsienk app for iOS or Android, enable Bluetooth and connect nearby. You can view charge level, voltage, temperature and charging status. Once installed, local Bluetooth monitoring does not require mobile data. The datasheet does not specify a guaranteed connection range.

The IP65 case provides protection against dust and water jets, with immersion excluded. Keep terminals protected and choose a secure installation within the approved temperature limits. Charging is specified at 0°C–55°C and discharging at −20°C–60°C. The BMS includes temperature protection, but exact trip and recovery thresholds are not listed.

Batteries purchased through Humsienk’s Australian website carry a five-year warranty from the original purchase date for covered defects under normal use and proper maintenance. For support, email service.au@humsienk.com with your order number, issue description and relevant photos or videos. Normal wear, misuse and improper installation are excluded, subject to the published warranty policy.
